Please send RFQ , we will respond immediately.

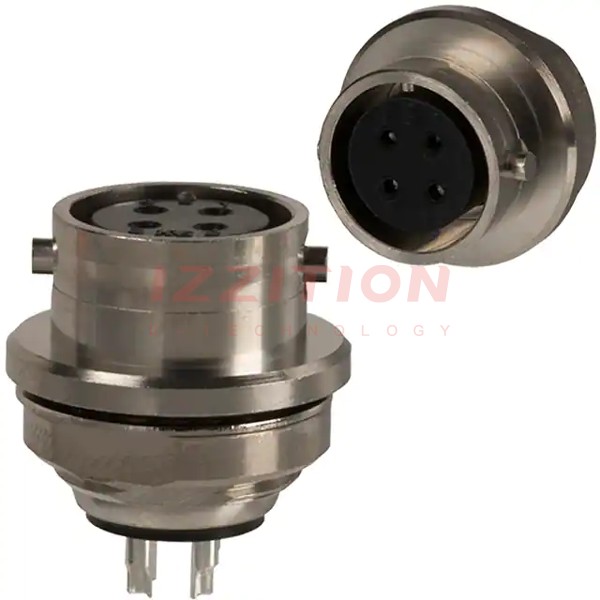

| Part Number | RM12WBR-4S(71) | RM12WBR-5S(71) | RM12WBR-6S(71) | RM12WBP-4S(71) | RM12WBR-2S(71) | RM12WBR-3S(71) | RM12WBR-4P(71) |
|---|---|---|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Plug, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Male Pins |
| Number of Positions | 4 | 5 | 6 | 4 | 2 | 3 | 4 |
| Shell Size - Insert | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Shell Size, MIL | - | - | - | - | - | - | - |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount | Free Hanging (In-Line) | Panel Mount | Panel Mount | Panel Mount |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut | - | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Termination | - | - | - | - | - | - | - |
| Fastening Type | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock |
| Orientation | Keyed | Keyed | Keyed | Keyed | Keyed | Keyed | Keyed |
| Primary Material | - | - | - | - | - | - | - |
| Shell Material | - | - | - | - | - | - | - |
| Shell Finish | - | - | - | - | - | - | - |
| Contact Finish - Mating | - | - | - | - | - | - | - |
| Color | - | - | - | - | - | - | - |
| Ingress Protection | - | - | - | - | - | - | - |
| Material Flammability Rating | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - |
| Shielding | - | - | - | - | - | - | - |
| Current Rating (Amps) | - | - | - | - | - | - | - |
| Voltage Rating | - | - | - | - | - | - | - |
| Cable Opening | - | - | - | - | - | - | - |
| Operating Temperature | - | - | - | - | - | - | - |
