Please send RFQ , we will respond immediately.

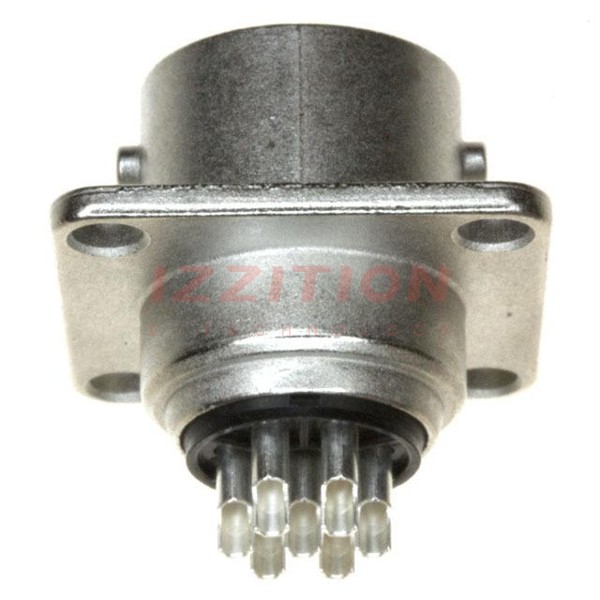

| Part Number | RM12BRB-7S | RM12BRD-7S | RM12BRB-2S | RM12BRB-3S | RM12BRB-4S | RM12BRB-5S | RM12BRB-6S |
|---|---|---|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Number of Positions | 7 | 7 | 2 | 3 | 4 | 5 | 6 |
| Shell Size - Insert | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Shell Size, MIL | - | - | - | - | - | - | - |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount | Panel Mount | Panel Mount | Panel Mount | Panel Mount |
| Mounting Feature | Flange | Bulkhead - Rear Side Nut | Flange | Flange | Flange | Flange | Flange |
| Termination | Solder Cup | - | Solder Cup | Solder Cup | Solder Cup | Solder Cup | - |
| Fastening Type | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock |
| Orientation | Keyed | Keyed | Keyed | Keyed | Keyed | Keyed | Keyed |
| Primary Material | Metal | - | Metal | Metal | Metal | Metal | - |
| Shell Material | Zinc Alloy | - | Zinc Alloy | Zinc Alloy | Zinc Alloy | Zinc Alloy | - |
| Shell Finish | Nickel | - | Nickel | Nickel | Nickel | Nickel | - |
| Contact Finish - Mating | Silver | - | Silver | Silver | Silver | Silver | - |
| Color | Silver | - | Silver | Silver | Silver | Silver | - |
| Ingress Protection | - | - | - | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | - | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | - |
| Features | - | - | - | - | - | - | - |
| Shielding | - | - | - | - | - | - | - |
| Current Rating (Amps) | 5A | 5A | 5A | 5A | 5A | 5A | 5A |
| Voltage Rating | 350VAC, 490VDC | 350VAC, 490VDC | 600VAC, 840VDC | 500VAC, 700VDC | 500VAC, 700VDC | 350VAC, 490VDC | 350VAC, 490VDC |
| Cable Opening | - | - | - | - | - | - | - |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
