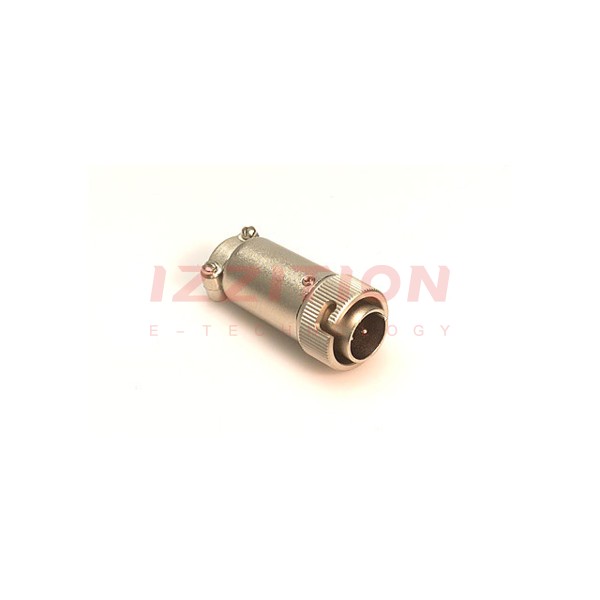

| Part Number | RM12BPE-3PH | RM12BPE-4PH | RM12BPE-5PH | RM12BPE-7PH | RM12BPE-6PH | RM12BPE-2PH |
|---|---|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Connector Type | Plug, Male Pins | Plug, Male Pins | Plug, Male Pins | Plug, Male Pins | Plug, Male Pins | Plug, Male Pins |
| Number of Positions | 3 | 4 | 5 | 7 | 6 | 2 |
| Shell Size - Insert | 12 | 12 | 12 | 12 | 12 | 12 |
| Shell Size, MIL | - | - | - | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Mounting Feature | - | - | - | - | - | - |
| Termination | - | - | - | - | - | - |
| Fastening Type | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock |
| Orientation | Keyed | Keyed | Keyed | Keyed | Keyed | Keyed |
| Primary Material | - | - | - | - | - | - |
| Shell Material | - | - | - | - | - | - |
| Shell Finish | - | - | - | - | - | - |
| Contact Finish - Mating | - | - | - | - | - | - |
| Color | - | - | - | - | - | - |
| Ingress Protection | - | - | - | - | - | - |
| Material Flammability Rating | - | - | - | - | - | - |
| Features | - | - | - | - | - | - |
| Shielding | - | - | - | - | - | - |
| Current Rating (Amps) | 5A | 5A | 5A | 5A | 5A | 5A |
| Voltage Rating | 500VAC, 700VDC | 500VAC, 700VDC | 350VAC, 490VDC | 350VAC, 490VDC | 350VAC, 490VDC | 600VAC, 840VDC |
| Cable Opening | - | - | - | - | - | - |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
