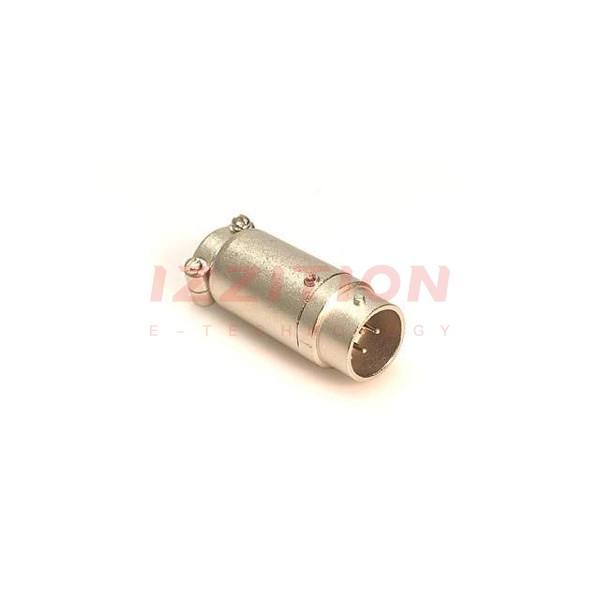

| Part Number | RM12BJB-3PH | RM12BJB-4PH | RM12BJB-5PH | RM12BJB-6PH | RM12BJB-7PH | RM12BRB-3PH | RM12BJB-2PH |
|---|---|---|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Connector Type | Jack, Male Pins | Jack, Male Pins | Jack, Male Pins | Jack, Male Pins | Jack, Male Pins | Receptacle, Male Pins | Jack, Male Pins |
| Number of Positions | 3 | 4 | 5 | 6 | 7 | 3 | 2 |
| Shell Size - Insert | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Shell Size, MIL | - | - | - | - | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount | Free Hanging (In-Line) |
| Mounting Feature | - | - | - | - | - | Flange | - |
| Termination | Solder Cup | Solder Cup | Solder Cup | Solder Cup | Solder Cup | Solder Cup | Solder Cup |
| Fastening Type | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock |
| Orientation | Keyed | Keyed | Keyed | Keyed | Keyed | Keyed | Keyed |
| Primary Material | Metal | Metal | Metal | Metal | Metal | Metal | Metal |
| Shell Material | Zinc Alloy | Zinc Alloy | Zinc Alloy | Zinc Alloy | Zinc Alloy | Zinc Alloy | Zinc Alloy |
| Shell Finish | Nickel | Nickel | Nickel | Nickel | Nickel | Nickel | Nickel |
| Contact Finish - Mating | Silver | Silver | Silver | Silver | Silver | Silver | Silver |
| Color | Silver | Silver | Silver | Silver | Silver | Silver | Silver |
| Ingress Protection | - | - | - | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Features | Backshell, Cable Clamp | Backshell, Cable Clamp | Backshell, Cable Clamp | Backshell, Cable Clamp | Backshell, Cable Clamp | - | Backshell, Cable Clamp |
| Shielding | - | - | - | - | - | - | - |
| Current Rating (Amps) | 5A | 5A | 5A | 5A | 5A | 5A | 5A |
| Voltage Rating | 500VAC, 700VDC | 500VAC, 700VDC | 350VAC, 490VDC | 350VAC, 490VDC | 350VAC, 490VDC | 500VAC, 700VDC | 600VAC, 840VDC |
| Cable Opening | 0.197" ~ 0.315" (5.00mm ~ 8.00mm) | 0.197" ~ 0.315" (5.00mm ~ 8.00mm) | 0.197" ~ 0.315" (5.00mm ~ 8.00mm) | 0.197" ~ 0.315" (5.00mm ~ 8.00mm) | 0.197" ~ 0.315" (5.00mm ~ 8.00mm) | - | 0.197" ~ 0.315" (5.00mm ~ 8.00mm) |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
