Please send RFQ , we will respond immediately.

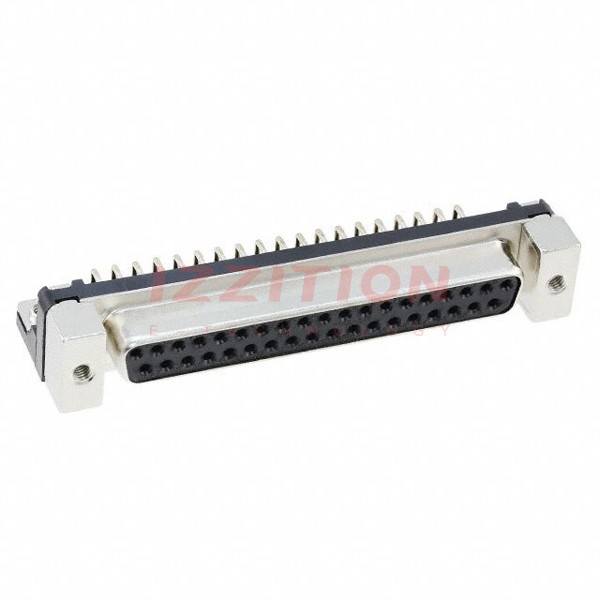

| Part Number | RDCD-37S-LN(55) | RDCD-37S-LNA(55) |
|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active |
| Connector Style | D-Sub | D-Sub |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Number of Positions | 37 | 37 |
| Number of Rows | 2 | 2 |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole, Right Angle |
| Shell Size, Connector Layout | 4 (DC, C) | 4 (DC, C) |
| Contact Type | Signal | Signal |
| Flange Feature | - | Mating Side, Female Screwlock (M2.6) |
| Termination | Solder | Solder |
| Primary Material | - | - |
| Shell Material, Finish | Steel, Nickel Plated | Steel, Nickel Plated |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 8.00µin (0.203µm) | 8.00µin (0.203µm) |
| Ingress Protection | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Current Rating (Amps) | 3A | 3A |
| Backset Spacing | - | - |
| Features | Board Lock | - |
