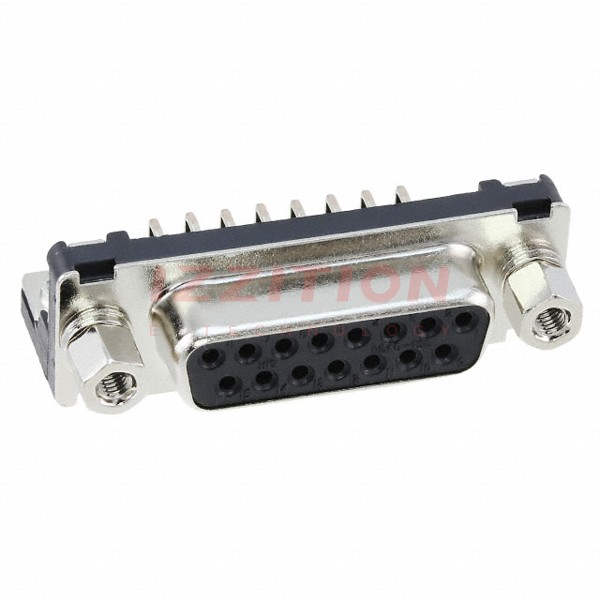

| Part Number | RDAD-15S-LNA(55) | RDAD-15SE-LNA(55) | RDAD-15P-LNA(55) |
|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active | Active |
| Connector Style | D-Sub | D-Sub | D-Sub |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets | Plug, Male Pins |
| Number of Positions | 15 | 15 | 15 |
| Number of Rows | 2 | 2 | 2 |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole, Right Angle |
| Shell Size, Connector Layout | 2 (DA, A) | 2 (DA, A) | 2 (DA, A) |
| Contact Type | Signal | Signal | Signal |
| Flange Feature | Mating Side, Female Screwlock (M2.6) | Mating Side, Female Screwlock (M2.6) | Mating Side, Female Screwlock (M2.6) |
| Termination | Solder | Solder | Solder |
| Primary Material | - | - | - |
| Shell Material, Finish | Steel, Nickel Plated | Steel, Nickel Plated | Steel, Nickel Plated |
| Contact Finish | Gold | Gold | Gold |
| Contact Finish Thickness | 8.00µin (0.203µm) | 8.00µin (0.203µm) | 8.00µin (0.203µm) |
| Ingress Protection | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Current Rating (Amps) | 3A | 3A | 3A |
| Backset Spacing | - | - | - |
| Features | - | - | - |
