RDAD-15P-LN(55)
  • Share:

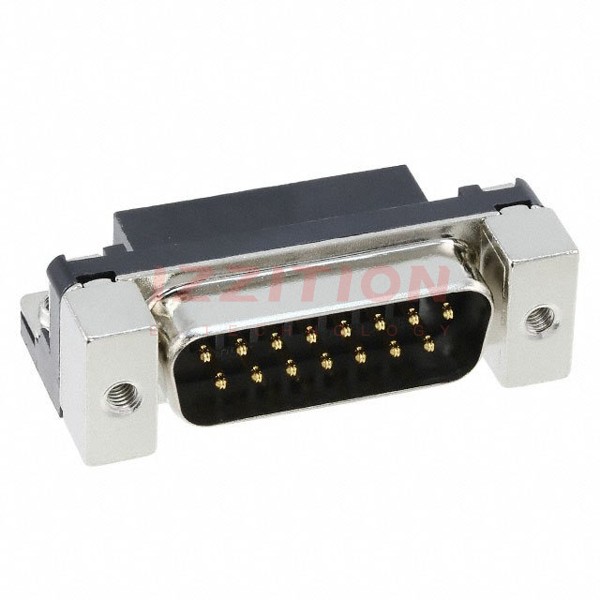

Hirose Electric Co Ltd RDAD-15P-LN(55)

Manufacturer No:
RDAD-15P-LN(55)
Manufacturer:
Hirose Electric Co Ltd
Package:
Tray
Datasheet:
RDAD-15P-LN(55) Datasheet
ECAD Model:
-
Description:
CONN D-SUB PLUG 15POS R/A SLDR
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Style:D-Sub
Connector Type:Plug, Male Pins
Number of Positions:15
Number of Rows:2
Mounting Type:Panel Mount, Through Hole, Right Angle
Shell Size, Connector Layout:2 (DA, A)
Contact Type:Signal
Flange Feature:Housing/Shell (M2.6)
Termination:Solder
Primary Material:-
Shell Material, Finish:Steel, Nickel Plated
Contact Finish:Gold
Contact Finish Thickness:8.00µin (0.203µm)
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Current Rating (Amps):3A
Backset Spacing:-
Features:Board Lock
0 Remaining View Similar

In Stock

-
85

Please send RFQ , we will respond immediately.

Similar Products

Part Number RDAD-15P-LN(55) RDAD-15P-LNA(55)
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Last Time Buy Active
Connector Style D-Sub D-Sub
Connector Type Plug, Male Pins Plug, Male Pins
Number of Positions 15 15
Number of Rows 2 2
Mounting Type Panel Mount, Through Hole, Right Angle Panel Mount, Through Hole, Right Angle
Shell Size, Connector Layout 2 (DA, A) 2 (DA, A)
Contact Type Signal Signal
Flange Feature Housing/Shell (M2.6) Mating Side, Female Screwlock (M2.6)
Termination Solder Solder
Primary Material - -
Shell Material, Finish Steel, Nickel Plated Steel, Nickel Plated
Contact Finish Gold Gold
Contact Finish Thickness 8.00µin (0.203µm) 8.00µin (0.203µm)
Ingress Protection - -
Material Flammability Rating UL94 V-0 UL94 V-0
Current Rating (Amps) 3A 3A
Backset Spacing - -
Features Board Lock -
