PX10-AD4WP(50)
  • Share:

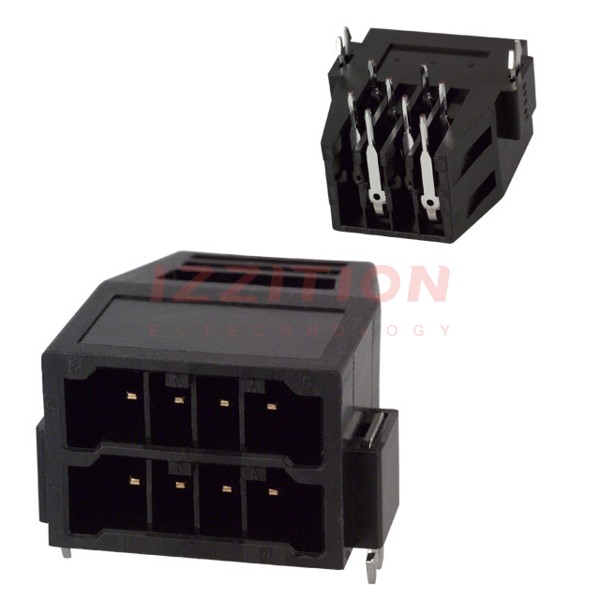

Hirose Electric Co Ltd PX10-AD4WP(50)

Manufacturer No:
PX10-AD4WP(50)
Manufacturer:
Hirose Electric Co Ltd
Package:
Tray
Datasheet:
PX10-AD4WP(50) Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 8POS 3.4MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.134" (3.40mm)
Number of Positions:8
Number of Rows:2
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:-
Contact Length - Post:0.177" (4.50mm)
Overall Contact Length:-
Insulation Height:0.583" (14.80mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:-
Contact Finish - Post:-
Contact Material:Copper Alloy
Insulation Material:Polybutylene Terephthalate (PBT)
Features:Board Lock
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):10A
Voltage Rating:600V
0 Remaining View Similar

In Stock

-
116

Please send RFQ , we will respond immediately.
