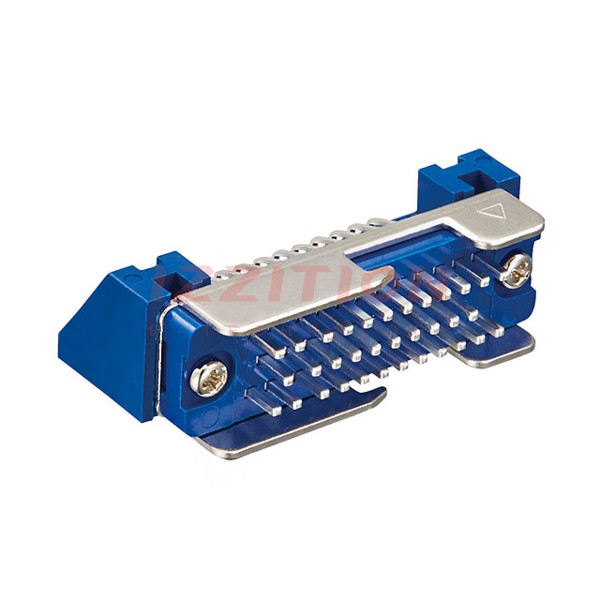

| Part Number | PR-1634BA-STA(50) | PR-1634BA-STAR(50) | PR-1634BA-ST(50) |
|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active | Active |
| Connector Type | Header | Header, Reverse Pin | Header |
| Contact Type | Male Pin | Male Pin | Male Pin |
| Pitch - Mating | - | - | - |
| Number of Positions | 34 | 34 | 34 |
| Number of Rows | 3 | 3 | 3 |
| Row Spacing - Mating | - | - | - |
| Number of Positions Loaded | All | All | All |
| Style | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire |
| Shrouding | Shrouded - 2 Wall | Shrouded - 2 Wall | Shrouded - 2 Wall |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle |
| Termination | Solder | Solder | Solder |
| Fastening Type | Latch Lock | Latch Lock | Latch Holder |
| Contact Length - Mating | - | - | - |
| Contact Length - Post | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) |
| Overall Contact Length | - | - | - |
| Insulation Height | 0.618" (15.70mm) | 0.618" (15.70mm) | 0.728" (18.50mm) |
| Contact Shape | Square | Square | Square |
| Contact Finish - Mating | Silver | Silver | Silver |
| Contact Finish Thickness - Mating | - | - | - |
| Contact Finish - Post | - | - | - |
| Contact Material | Brass | Brass | Brass |
| Insulation Material | - | - | - |
| Features | Bracket | Bracket | Bracket |
| Operating Temperature | - | - | - |
| Ingress Protection | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Insulation Color | Blue | Blue | Blue |
| Current Rating (Amps) | 3A | 3A | 3A |
| Voltage Rating | 300V | 300V | 300V |
