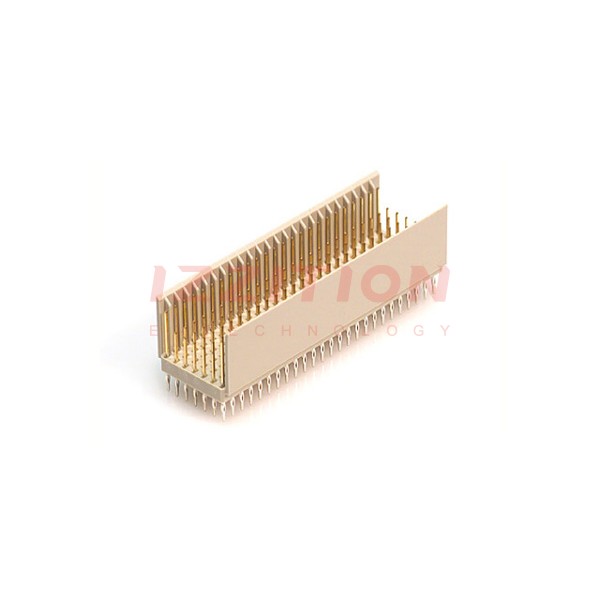

| Part Number | PCN21B-125PB-2PF-G | PCN21B-125SB-2PF-G | PCN21B-125PAB-2PF-G |
|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Obsolete | Obsolete |
| Connector Type | Header, Male Pins | Receptacle, Female Sockets | Header, Male Pins |
| Connector Style | B 25 | B 25 | AB 25 |
| Number of Positions | 175 (125 + 50 Ground) | 125 | 169 (125 + 44 Ground) |
| Number of Positions Loaded | All | All | All |
| Pitch | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Number of Rows | 5 + 2 | 5 | 5 + 2 |
| Mounting Type | Through Hole | Through Hole, Right Angle | Through Hole |
| Termination | Press-Fit | Press-Fit | Press-Fit |
| Connector Usage | Backplane | Front Board | CompactPCI |
| Contact Finish | Gold | Gold | Gold |
| Contact Finish Thickness | 31.5µin (0.80µm) | 31.5µin (0.80µm) | 31.5µin (0.80µm) |
