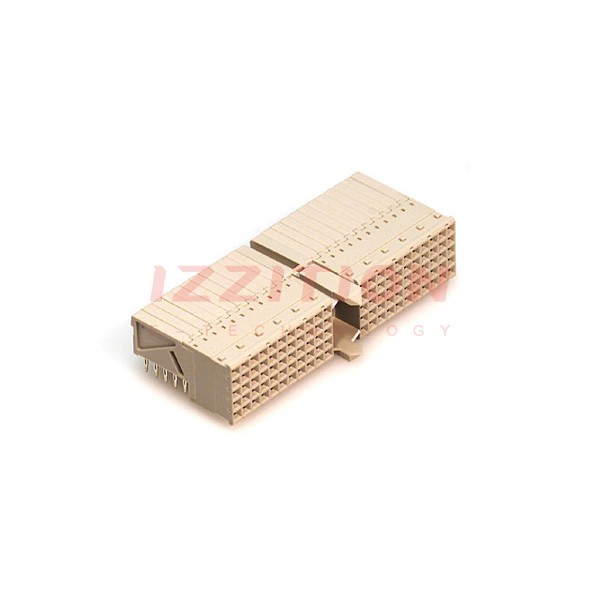

| Part Number | PCN21B-110SA-2PF | PCN21B-110SB-2PF | PCN21B-110PA-2PF |
|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Obsolete | Obsolete |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets | Header, Male Pins |
| Connector Style | A 22 | B 22 | A 22 |
| Number of Positions | 110 | 110 | 110 |
| Number of Positions Loaded | All | All | All |
| Pitch | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Number of Rows | 5 | 5 | 5 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole |
| Termination | Press-Fit | Press-Fit | Press-Fit |
| Connector Usage | Front Board | Front Board | Backplane |
| Contact Finish | Gold | Gold | Gold |
| Contact Finish Thickness | 31.5µin (0.80µm) | 31.5µin (0.80µm) | 31.5µin (0.80µm) |
