Please send RFQ , we will respond immediately.

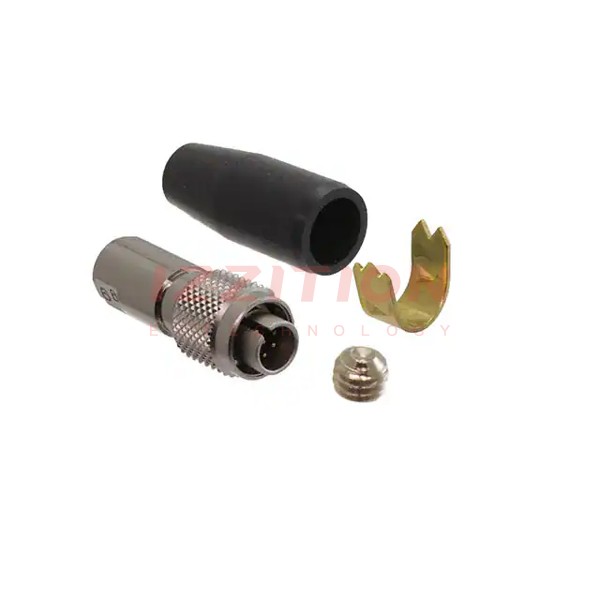

| Part Number | MXR-8P-8P(31) | MXR-8P-8P(71) | MXR-8P-8P(01) |
|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Obsolete | Obsolete |
| Connector Type | Plug, Male Pins | Plug, Male Pins | Plug, Male Pins |
| Number of Positions | 8 | 8 | 8 |
| Shell Size - Insert | 8 | 8 | 8 |
| Shell Size, MIL | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Mounting Feature | - | - | - |
| Termination | Solder Cup | Solder Cup | Solder Cup |
| Fastening Type | Push-Pull | Push-Pull | Push-Pull |
| Orientation | Keyed | Keyed | Keyed |
| Primary Material | Metal | Metal | Metal |
| Shell Material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
| Shell Finish | Nickel | Nickel | Nickel |
| Contact Finish - Mating | Gold | Gold | - |
| Color | Black, Silver | Black, Silver | - |
| Ingress Protection | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | - |
| Features | Backshell, Cable Clamp, Coupling Nut, Ground, Strain Relief | Backshell, Clamp, Ground, Strain Relief | - |
| Shielding | Shielded | - | - |
| Current Rating (Amps) | 2A | 2A | - |
| Voltage Rating | 100VAC, 140VDC | 100VAC, 140VDC | - |
| Cable Opening | 0.315" (8.00mm) | - | - |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | - |
