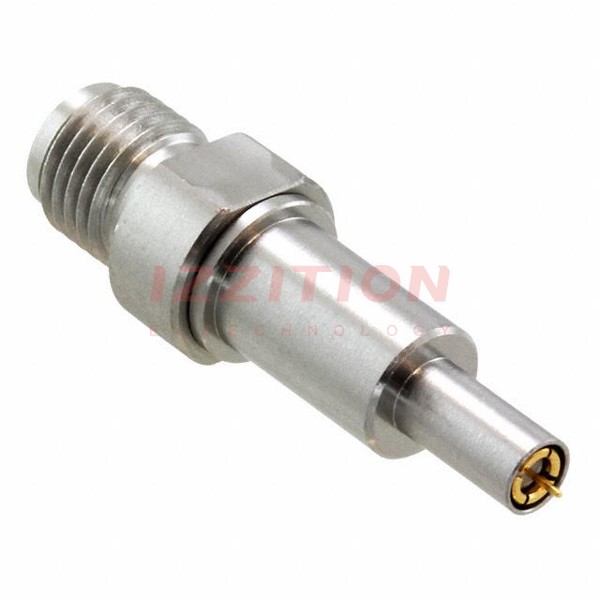

| Part Number | MS-166-HRMJ-H1 | MS-156-HRMJ-H1 | MS-166-HRMJ-1 | MS-166-HRMJ-F1 |
|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active | Active | Active |
| Adapter Type | Plug to Jack | Plug to Jack | Plug to Jack | Plug to Jack |
| Conversion Type | Between Series | Between Series | Between Series | Between Series |
| Adapter Series | SMA to Coaxial Switch | SMA to Coaxial Switch | SMA to Coaxial Switch | SMA to Coaxial Switch |
| Center Gender | Female to Male | Female to Male | Female to Male | Female to Male |
| Convert From (Adapter End) | Coaxial Switch - 2.80mm Plug Dia Plug, Male Pin | Coaxial Switch - 4mm Plug Dia Plug, Male Pin | Coaxial Switch - 2.80mm Plug Dia Plug, Male Pin | Coaxial Switch - 2.80mm Plug Dia Plug, Male Pin |
| Convert To (Adapter End) | SMA Jack, Female Socket | SMA Jack, Female Socket | SMA Jack, Female Socket | SMA Jack, Female Socket |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Style | Straight | Straight | Straight | Straight |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount | Panel Mount |
| Mounting Feature | - | - | Flange | Flange |
| Fastening Type | Push-Pull, Threaded | Push-Pull, Threaded | Push-Pull, Threaded | Push-Pull, Threaded |
| Frequency - Max | 8 GHz | 6 GHz | 8 GHz | 8 GHz |
| Ingress Protection | - | - | - | - |
| Center Contact Plating | Gold | Gold | Gold | Gold |
| Features | - | - | - | - |
