Please send RFQ , we will respond immediately.

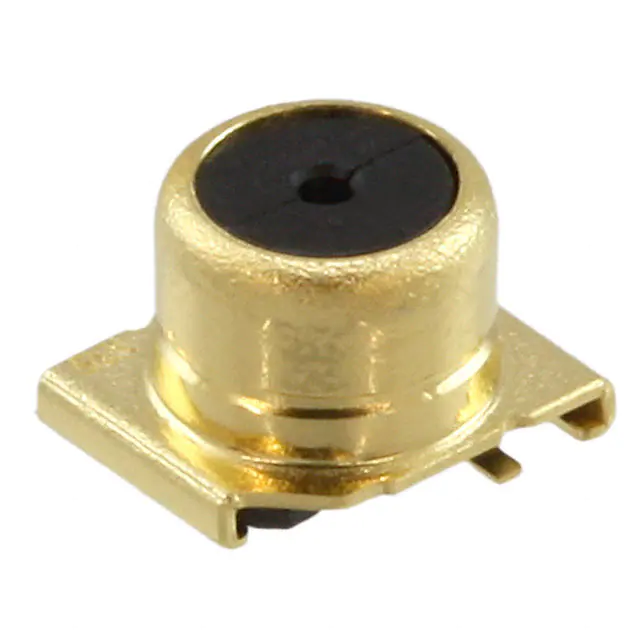

| Part Number | MS-162A | MS-162B | MS-162 |
|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Active | Active |
| Connector Style | Coaxial Switch - 4mm Plug Dia | Coaxial Switch - 4mm Plug Dia | Coaxial Switch - 4mm Plug Dia |
| Connector Type | Receptacle, Female Socket | Receptacle, Female Socket | Receptacle, Female Socket |
| Contact Termination | Solder | Solder | Solder |
| Shield Termination | Solder | Solder | Solder |
| Impedance | 50Ohm | 50Ohm | 50Ohm |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Mounting Feature | - | - | - |
| Cable Group | - | - | - |
| Fastening Type | Snap-On | Snap-On | Snap-On |
| Frequency - Max | 10 GHz | 10 GHz | 10 GHz |
| Number of Ports | 1 | 1 | 1 |
| Features | Internal Switch | Internal Switch | Internal Switch |
| Housing Color | Gold | Gold | Gold |
| Ingress Protection | - | - | - |
| Center Contact Material | Beryllium Copper | Copper Alloy | Beryllium Copper |
