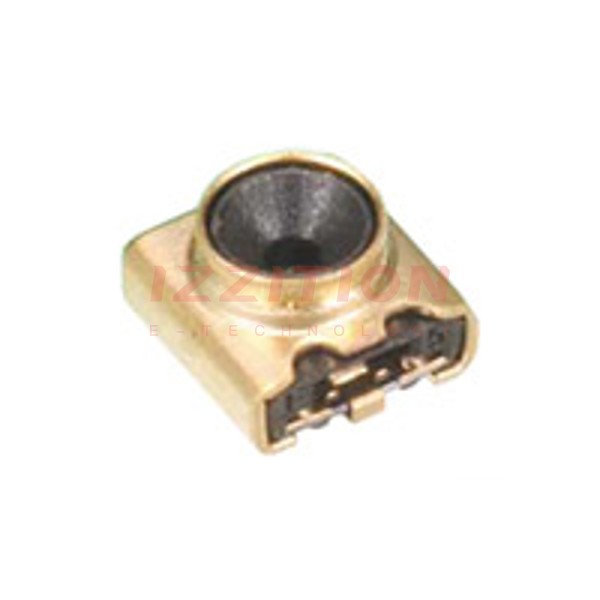

| Part Number | MS-156NB(01) | MS-156NB(02) | MS-151NB(01) |
|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Obsolete | Active |
| Connector Style | Coaxial Switch - 4mm Plug Dia | Coaxial Switch - 4mm Plug Dia | Coaxial Switch - 4.15mm Plug Dia |
| Connector Type | Receptacle, Female Socket | Receptacle, Female Socket | Receptacle, Female Socket |
| Contact Termination | Solder | Solder | Solder |
| Shield Termination | Solder | Solder | Solder |
| Impedance | 50Ohm | 50Ohm | 50Ohm |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount, Right Angle |
| Mounting Feature | - | - | - |
| Cable Group | - | - | - |
| Fastening Type | Snap-On | Snap-On | Snap-On |
| Frequency - Max | 6 GHz | 6 GHz | 3 GHz |
| Number of Ports | 1 | 1 | 1 |
| Features | Internal Switch | Internal Switch, Pick and Place Cap | Internal Switch |
| Housing Color | Gold | Gold | Black |
| Ingress Protection | - | - | - |
| Center Contact Material | Beryllium Copper | Beryllium Copper | Phosphor Bronze |
