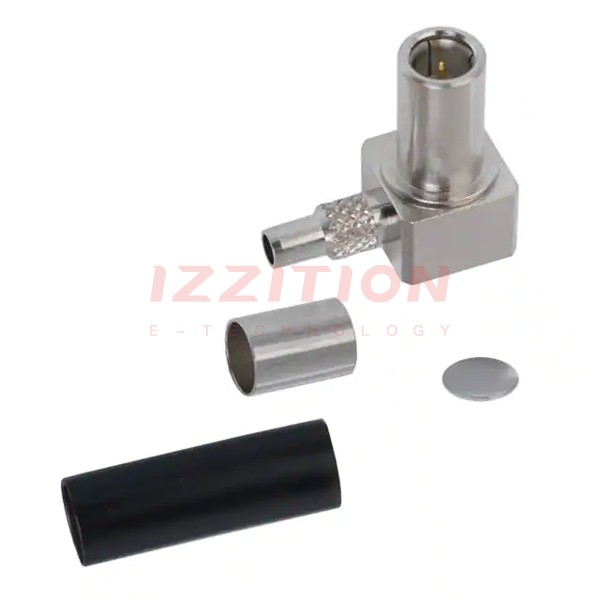

| Part Number | MS-147-C(LP)-1 | MS-147-C(LP)-4 | MS-145-C(LP)-1 |
|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active | Active |
| Connector Style | Coaxial Switch - 4.8mm Plug Dia | Coaxial Switch - 4.8mm Plug Dia | Coaxial Switch - 4.15mm Plug Dia |
| Connector Type | Plug, Male Pin | Plug, Male Pin | Plug, Male Pin |
| Contact Termination | Solder | Solder | Solder |
| Shield Termination | Crimp | Crimp | Solder |
| Impedance | 50Ohm | 50Ohm | 50Ohm |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle |
| Mounting Feature | - | - | - |
| Cable Group | 1.5D-HQEW | 1.5D-HQEW | - |
| Fastening Type | Snap-On | Push-Pull | Push-Pull |
| Frequency - Max | 6 GHz | 3 GHz | 2.5 GHz |
| Number of Ports | 1 | 1 | 1 |
| Features | Internal Switch | Internal Switch | Internal Switch |
| Housing Color | Silver | Silver | Gold |
| Ingress Protection | - | - | - |
| Center Contact Material | Beryllium Copper | Beryllium Copper | Beryllium Copper |
