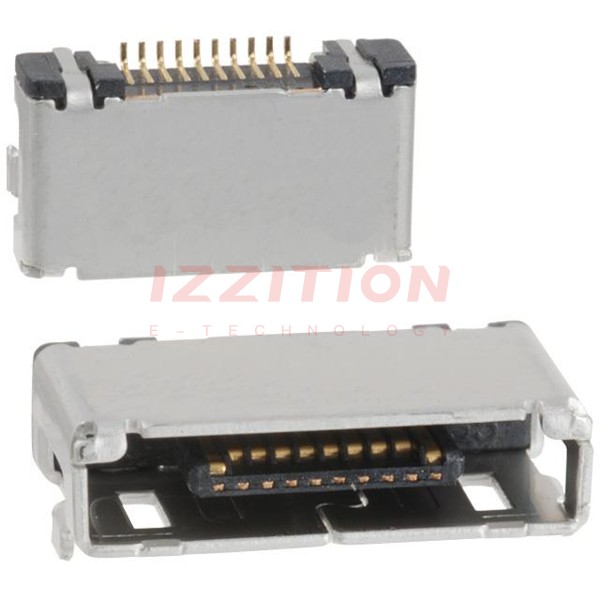

| Part Number | MQ212B-10PR | MQ212B-10P |
|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Obsolete |
| Connector Type | Receptacle | Receptacle |
| Contact Type | Center Strip Contact | Center Strip Contact |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Number of Positions | 10 | 10 |
| Number of Positions Loaded | All | All |
| Pitch - Mating | 0.020" (0.50mm) | 0.020" (0.50mm) |
| Number of Rows | 1 | 1 |
| Row Spacing - Mating | - | - |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Termination | Solder | Solder |
| Fastening Type | Push-Pull | Push-Pull |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) | 8.00µin (0.203µm) |
| Insulation Color | Black | Black |
| Insulation Height | 0.112" (2.85mm) | 0.112" (2.85mm) |
| Contact Length - Post | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Contact Finish - Post | Gold | Gold |
| Mated Stacking Heights | - | - |
| Ingress Protection | - | - |
| Features | Board Guide, Solder Retention | Board Guide, Solder Retention |
| Current Rating (Amps) | 0.3A | 0.3A |
| Voltage Rating | 50VAC | 50VAC |
