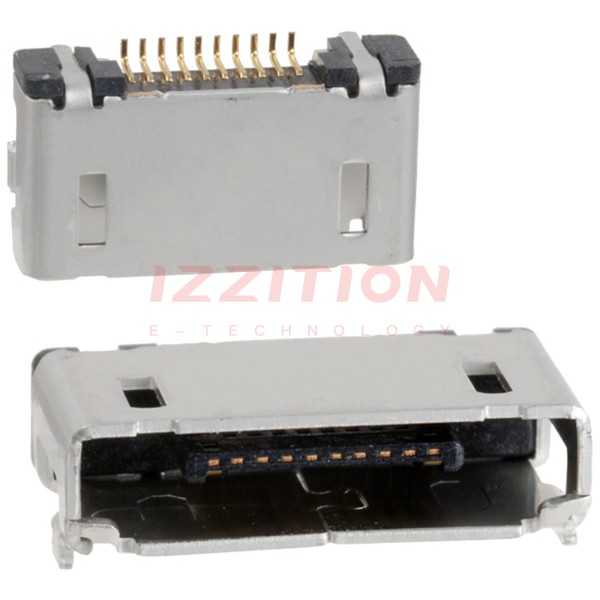

MQ212B-10P
  • Share:

Hirose Electric Co Ltd MQ212B-10P

Manufacturer No:
MQ212B-10P
Manufacturer:
Hirose Electric Co Ltd
Package:
Tape & Reel (TR)
Datasheet:
MQ212B-10P Datasheet
ECAD Model:
-
Description:
CONN RCPT 10P 0.02 GOLD SMD R/A
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle
Contact Type:Center Strip Contact
Style:Board to Cable/Wire
Number of Positions:10
Number of Positions Loaded:All
Pitch - Mating:0.020" (0.50mm)
Number of Rows:1
Row Spacing - Mating:-
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:8.00µin (0.203µm)
Insulation Color:Black
Insulation Height:0.112" (2.85mm)
Contact Length - Post:-
Operating Temperature:-40°C ~ 85°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Gold
Mated Stacking Heights:-
Ingress Protection:-
Features:Board Guide, Solder Retention
Current Rating (Amps):0.3A
Voltage Rating:50VAC
0 Remaining View Similar

In Stock

-
288

Please send RFQ , we will respond immediately.

Similar Products

Part Number MQ212B-10P MQ212B-10PR   MQ212-10P
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Obsolete Obsolete Obsolete
Connector Type Receptacle Receptacle Receptacle
Contact Type Center Strip Contact Center Strip Contact Center Strip Contact
Style Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire
Number of Positions 10 10 10
Number of Positions Loaded All All All
Pitch - Mating 0.020" (0.50mm) 0.020" (0.50mm) 0.020" (0.50mm)
Number of Rows 1 1 1
Row Spacing - Mating - - -
Mounting Type Surface Mount, Right Angle Surface Mount, Right Angle Surface Mount, Right Angle
Termination Solder Solder Solder
Fastening Type Push-Pull Push-Pull Push-Pull
Contact Finish - Mating Gold Gold Gold
Contact Finish Thickness - Mating 8.00µin (0.203µm) 8.00µin (0.203µm) 8.00µin (0.203µm)
Insulation Color Black Black Black
Insulation Height 0.112" (2.85mm) 0.112" (2.85mm) 0.112" (2.85mm)
Contact Length - Post - - -
Operating Temperature -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0
Contact Finish - Post Gold Gold Gold
Mated Stacking Heights - - -
Ingress Protection - - -
Features Board Guide, Solder Retention Board Guide, Solder Retention Board Guide, Solder Retention
Current Rating (Amps) 0.3A 0.3A 0.3A
Voltage Rating 50VAC 50VAC 50VAC
