MQ172X-4PA(30)
  • Share:

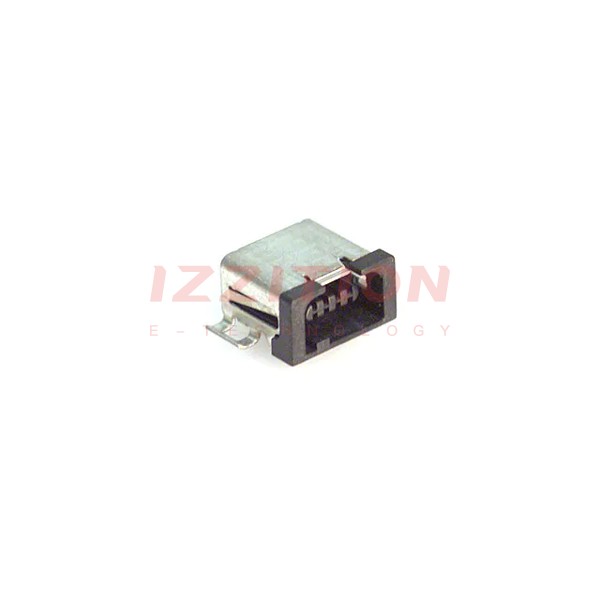

Hirose Electric Co Ltd MQ172X-4PA(30)

Manufacturer No:
MQ172X-4PA(30)
Manufacturer:
Hirose Electric Co Ltd
Package:
Tray
Datasheet:
MQ172X-4PA(30) Datasheet
ECAD Model:
-
Description:
CONN RCPT 4P 0.031 GOLD SMD R/A
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle
Contact Type:Center Strip Contact
Style:Board to Cable/Wire
Number of Positions:4
Number of Positions Loaded:All
Pitch - Mating:0.031" (0.80mm)
Number of Rows:1
Row Spacing - Mating:-
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Fastening Type:Friction Lock
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:8.00µin (0.203µm)
Insulation Color:Black
Insulation Height:0.154" (3.90mm)
Contact Length - Post:-
Operating Temperature:-30°C ~ 75°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Gold
Mated Stacking Heights:-
Ingress Protection:-
Features:Board Guide, Shielded, Solder Retention
Current Rating (Amps):2A or 0.5A, 3A
Voltage Rating:30VDC, 40VAC
0 Remaining View Similar

In Stock

$2.07
111

Please send RFQ , we will respond immediately.
