Please send RFQ , we will respond immediately.

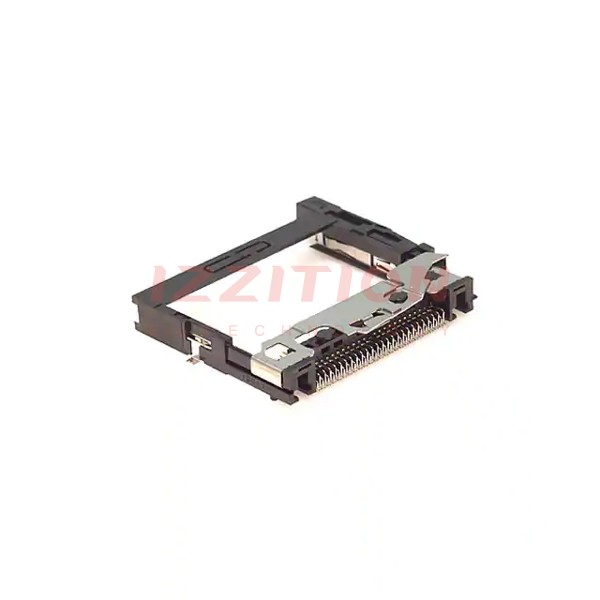

| Part Number | MI21-50PD-SF-EJL(71) | MI21-50PD-SF-EJR(71) | MI21A-50PD-SF-EJL(71) |
|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active | Active |
| Card Type | CompactFlash® - Type I, II | CompactFlash® - Type I, II | CompactFlash® - Type I, II |
| Number of Positions | 50 | 50 | 50 |
| Connector Type | Connector and Ejector | Connector and Ejector | Connector and Ejector |
| Insertion, Removal Method | Push In, Push Out | Push In, Push Out | Push In, Push Out |
| Ejector Side | Left | Right | Left |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Features | Board Guide | Board Guide | Board Guide |
| Height Above Board | 0.281" (7.15mm) | 0.281" (7.15mm) | 0.341" (8.65mm) |
| Mounting Feature | Normal, Standard - Top | Normal, Standard - Top | Normal, Standard - Top |
| Contact Finish | Gold | Gold | Gold |
| Contact Finish Thickness | 3.94µin (0.10µm) | 3.94µin (0.10µm) | 3.94µin (0.10µm) |
