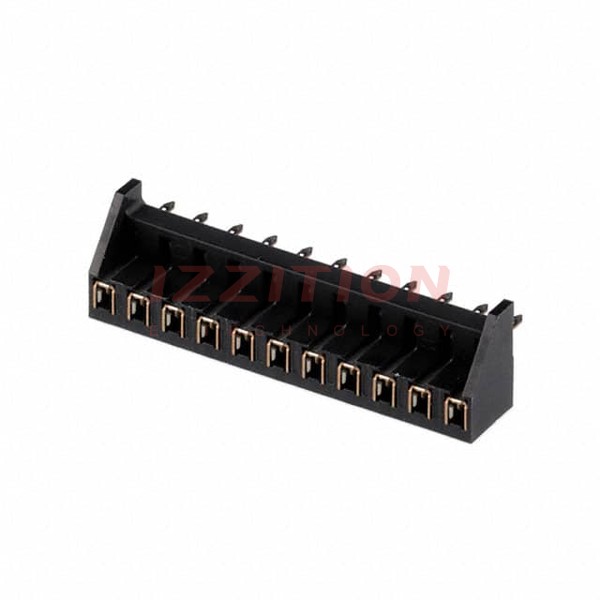

| Part Number | MDF7-11S-2.54DSA(56) | MDF7-11S-2.54DSA(55) |
|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active |
| Connector Type | Receptacle, Bottom Entry | Receptacle, Bottom Entry |
| Contact Type | Female Socket | Female Socket |
| Style | Board to Board | Board to Board |
| Number of Positions | 11 | 11 |
| Number of Positions Loaded | All | All |
| Pitch - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Rows | 1 | 1 |
| Row Spacing - Mating | - | - |
| Mounting Type | Through Hole | Through Hole |
| Termination | Solder | Solder |
| Fastening Type | Push-Pull | Push-Pull |
| Contact Finish - Mating | Gold | Tin |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) | 78.7µin (2.00µm) |
| Insulation Color | Black | Black |
| Insulation Height | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Contact Length - Post | 0.118" (3.00mm) | 0.118" (3.00mm) |
| Operating Temperature | -35°C ~ 85°C | -35°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Contact Finish - Post | Tin | Tin |
| Mated Stacking Heights | - | - |
| Ingress Protection | - | - |
| Features | - | - |
| Current Rating (Amps) | 3A | 3A |
| Voltage Rating | 250VAC | 250VAC |
