MDF14A-10P-2.5DS(05)
  • Share:

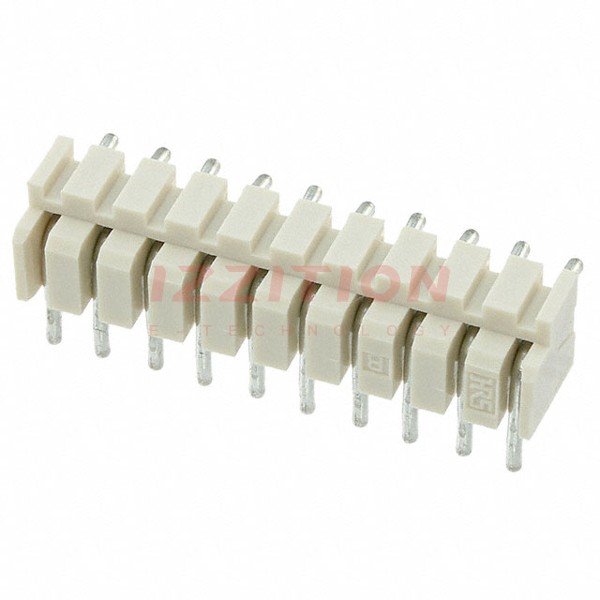

Hirose Electric Co Ltd MDF14A-10P-2.5DS(05)

Manufacturer No:
MDF14A-10P-2.5DS(05)
Manufacturer:
Hirose Electric Co Ltd
Package:
Bulk
Datasheet:
MDF14A-10P-2.5DS(05) Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 10POS 2.5MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.098" (2.50mm)
Number of Positions:10
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Unshrouded
Mounting Type:Through Hole, Right Angle
Termination:Kinked Pin, Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.130" (3.30mm)
Contact Length - Post:0.130" (3.30mm)
Overall Contact Length:-
Insulation Height:0.216" (5.49mm)
Contact Shape:Circular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:118.1µin (3.00µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon
Features:-
Operating Temperature:-30°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):5A
Voltage Rating:250V
0 Remaining View Similar

In Stock

$38.34
23

Please send RFQ , we will respond immediately.
