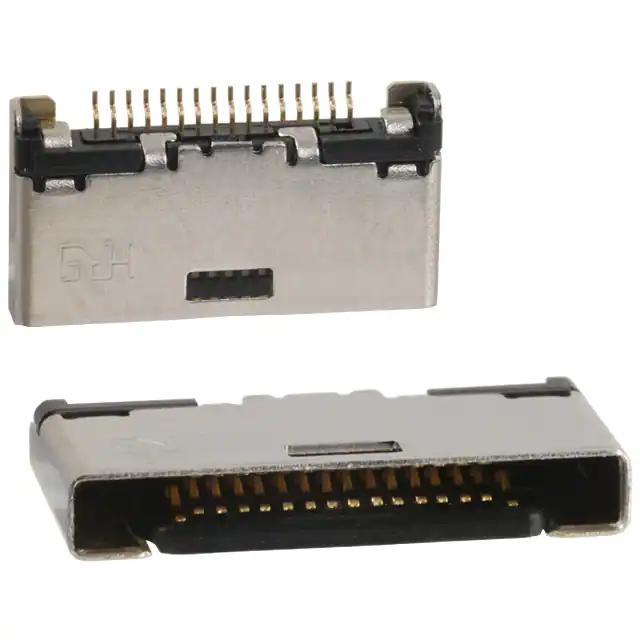

| Part Number | LX60-16S | LX60-12S |
|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active |
| Connector Type | Receptacle | Receptacle |
| Contact Type | Center Strip Contact | Center Strip Contact |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Number of Positions | 16 | 12 |
| Number of Positions Loaded | All | All |
| Pitch - Mating | 0.020" (0.50mm) | 0.020" (0.50mm) |
| Number of Rows | 1 | 1 |
| Row Spacing - Mating | - | - |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Termination | Solder | Solder |
| Fastening Type | Friction Lock | Friction Lock |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 12.0µin (0.30µm) | 12.0µin (0.30µm) |
| Insulation Color | Black | Black |
| Insulation Height | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Contact Length - Post | - | - |
| Operating Temperature | -40°C ~ 70°C | -40°C ~ 70°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Contact Finish - Post | Gold | Gold |
| Mated Stacking Heights | - | - |
| Ingress Protection | - | - |
| Features | Board Guide | Board Guide |
| Current Rating (Amps) | 0.5A | 0.5A |
| Voltage Rating | 50VAC | 50VAC |
