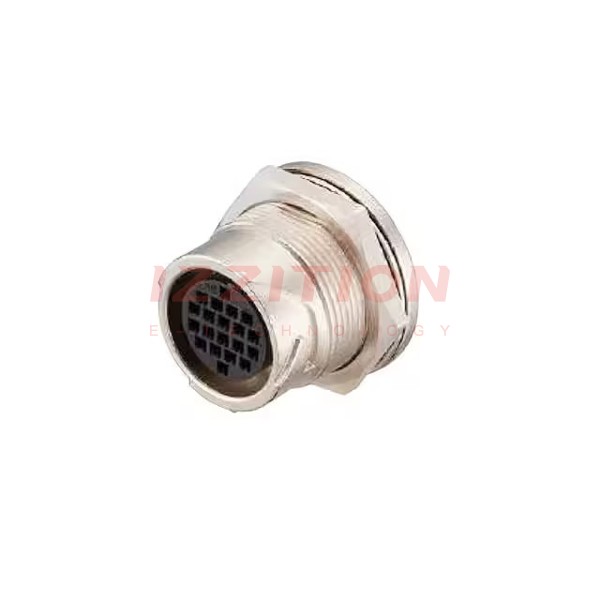

| Part Number | LF13WBRB-20PC | LF13WBRB-20SC |
|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active |
| Connector Type | Receptacle, Male Pins | Receptacle, Female Sockets |
| Number of Positions | 20 | 20 |
| Shell Size - Insert | 13 | 13 |
| Shell Size, MIL | - | - |
| Mounting Type | Panel Mount | Panel Mount |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Termination | Crimp | Crimp |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Orientation | Keyed | Keyed |
| Primary Material | Metal | Metal |
| Shell Material | Zinc Alloy | Zinc Alloy |
| Shell Finish | Nickel | Nickel |
| Contact Finish - Mating | Gold | Gold |
| Color | Silver | Silver |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof | IP67/IP68 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Features | - | - |
| Shielding | Shielded | Shielded |
| Current Rating (Amps) | 2A | 2A |
| Voltage Rating | 30VAC, 42VDC | 30VAC, 42VDC |
| Cable Opening | - | - |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C |
