LF13WBJ-20S
  • Share:

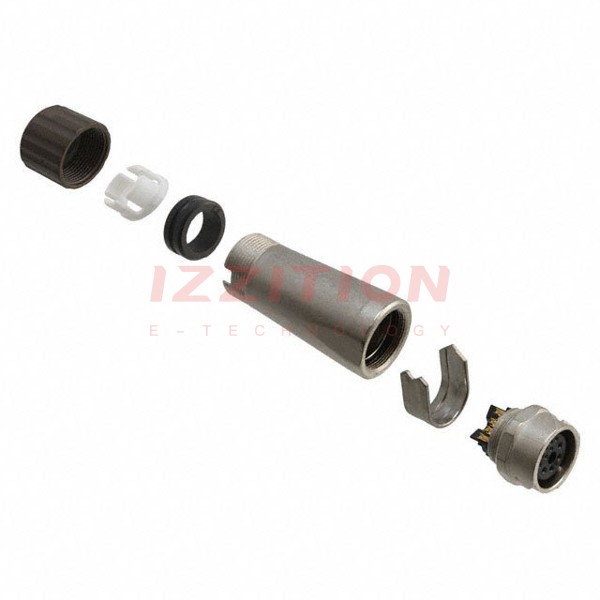

Hirose Electric Co Ltd LF13WBJ-20S

Manufacturer No:
LF13WBJ-20S
Manufacturer:
Hirose Electric Co Ltd
Package:
Bulk
Datasheet:
LF13WBJ-20S Datasheet
ECAD Model:
-
Description:
CONN JACK FMALE 20P SOLDER CUP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Jack, Female Sockets
Number of Positions:20
Shell Size - Insert:13
Shell Size, MIL:-
Mounting Type:Free Hanging (In-Line)
Mounting Feature:-
Termination:Solder Cup
Fastening Type:Bayonet Lock
Orientation:Keyed
Primary Material:Metal
Shell Material:Zinc Alloy
Shell Finish:Nickel
Contact Finish - Mating:Gold
Color:Brown, Silver
Ingress Protection:IP67/IP68 - Dust Tight, Waterproof
Material Flammability Rating:UL94 V-0
Features:Backshell, Clamp, Strain Relief
Shielding:Shielded
Current Rating (Amps):2A
Voltage Rating:30VAC, 42VDC
Cable Opening:-
Operating Temperature:-25°C ~ 85°C
0 Remaining View Similar

In Stock

$23.73
8

Please send RFQ , we will respond immediately.

Similar Products

Part Number LF13WBJ-20S LF13WBR-20S   LF13WBP-20S   LF13WBJ-20P
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Active Active Active Active
Connector Type Jack, Female Sockets Receptacle, Female Sockets Plug, Female Sockets Jack, Male Pins
Number of Positions 20 20 20 20
Shell Size - Insert 13 13 13 13
Shell Size, MIL - - - -
Mounting Type Free Hanging (In-Line) Panel Mount Free Hanging (In-Line) Free Hanging (In-Line)
Mounting Feature - Bulkhead - Rear Side Nut - -
Termination Solder Cup Solder Cup Solder Cup Solder Cup
Fastening Type Bayonet Lock Bayonet Lock Bayonet Lock Bayonet Lock
Orientation Keyed Keyed Keyed Keyed
Primary Material Metal Metal Metal Metal
Shell Material Zinc Alloy Zinc Alloy Zinc Alloy Zinc Alloy
Shell Finish Nickel Nickel Nickel Nickel
Contact Finish - Mating Gold Gold Gold Gold
Color Brown, Silver Silver Brown, Silver Brown, Silver
Ingress Protection IP67/IP68 - Dust Tight, Waterproof IP67/IP68 - Dust Tight, Waterproof IP67/IP68 - Dust Tight, Waterproof IP67/IP68 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Features Backshell, Clamp, Strain Relief - Backshell, Clamp, Coupling Nut, Strain Relief Backshell, Clamp, Strain Relief
Shielding Shielded - Shielded Shielded
Current Rating (Amps) 2A 2A 2A 2A
Voltage Rating 30VAC, 42VDC 30VAC, 42VDC 30VAC, 42VDC 30VAC, 42VDC
Cable Opening - - - -
Operating Temperature -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C
