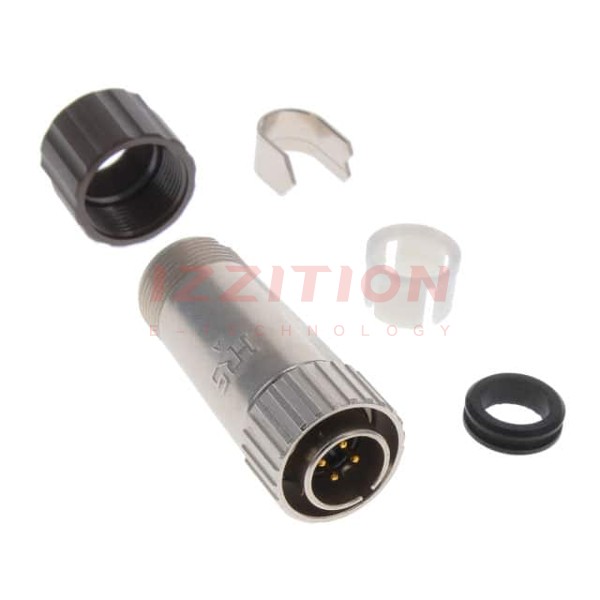

| Part Number | LF10WBP-4P(31) | LF10WBP-4S(31) | LF10WBPD-4P(31) |
|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active | Active |
| Connector Type | Plug, Male Pins | Plug, Female Sockets | Plug, Male Pins |
| Number of Positions | 4 | 4 | 4 |
| Shell Size - Insert | 10 | 10 | 10 |
| Shell Size, MIL | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Mounting Feature | - | - | - |
| Termination | Solder Cup | Solder Cup | Solder Cup |
| Fastening Type | Bayonet Lock | Bayonet Lock | Bayonet Lock |
| Orientation | Keyed | Keyed | Keyed |
| Primary Material | Metal | Metal | Metal |
| Shell Material | Zinc Alloy | Zinc Alloy | Zinc Alloy |
| Shell Finish | Nickel | Nickel | Nickel |
| Contact Finish - Mating | Gold | Gold | Gold |
| Color | Brown, Silver | Brown, Silver | Brown, Silver |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof | IP67/IP68 - Dust Tight, Waterproof | IP67/IP68 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Features | Backshell, Cable Clamp, Coupling Nut, Strain Relief | Backshell, Cable Clamp, Coupling Nut, Strain Relief | Backshell, Cable Clamp, Coupling Nut, Strain Relief |
| Shielding | Shielded | Shielded | Shielded |
| Current Rating (Amps) | 10A | 10A | 10A |
| Voltage Rating | 125VAC/DC | 125VAC/DC | 125VAC/DC |
| Cable Opening | 0.287" (7.30mm) | 0.287" (7.30mm) | 0.287" (7.30mm) |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
