LF07WBR-3P
  • Share:

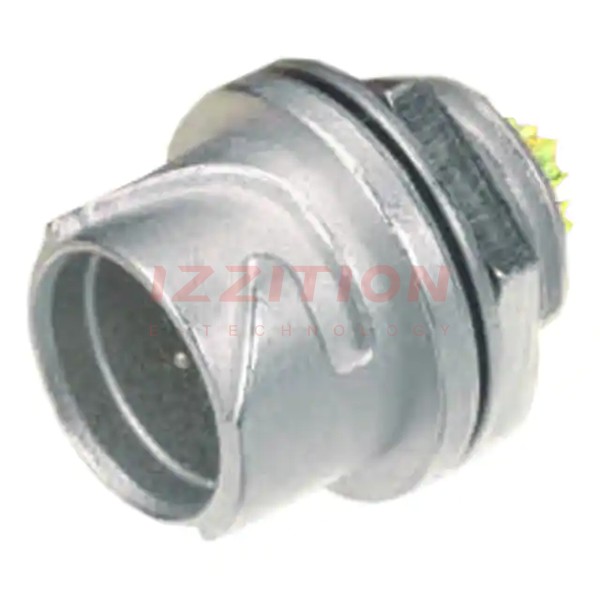

Hirose Electric Co Ltd LF07WBR-3P

Manufacturer No:
LF07WBR-3P
Manufacturer:
Hirose Electric Co Ltd
Package:
Bulk
Datasheet:
LF07WBR-3P Datasheet
ECAD Model:
-
Description:
CONN RCPT MALE 3P GOLD SLDR CUP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle, Male Pins
Number of Positions:3
Shell Size - Insert:7
Shell Size, MIL:-
Mounting Type:Panel Mount
Mounting Feature:Bulkhead - Rear Side Nut
Termination:Solder Cup
Fastening Type:Bayonet Lock
Orientation:Keyed
Primary Material:Metal
Shell Material:Zinc Alloy
Shell Finish:Nickel
Contact Finish - Mating:Gold
Color:Silver
Ingress Protection:IP67/IP68 - Dust Tight, Waterproof
Material Flammability Rating:UL94 V-0
Features:-
Shielding:-
Current Rating (Amps):5A
Voltage Rating:125VAC, 175VDC
Cable Opening:-
Operating Temperature:-25°C ~ 85°C
0 Remaining View Similar

In Stock

$8.70
77

Please send RFQ , we will respond immediately.

Similar Products

Part Number LF07WBR-3P LF07WBR-6P   LF07WBR-3S   LF07WBJ-3P   LF07WBP-3P
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Active Active Active Active Obsolete
Connector Type Receptacle, Male Pins Receptacle, Male Pins Receptacle, Female Sockets Jack, Male Pins Plug, Male Pins
Number of Positions 3 6 3 3 3
Shell Size - Insert 7 7 7 7 7
Shell Size, MIL - - - - -
Mounting Type Panel Mount Panel Mount Panel Mount Free Hanging (In-Line) Free Hanging (In-Line)
Mounting Feature Bulkhead - Rear Side Nut Bulkhead - Rear Side Nut Bulkhead - Rear Side Nut - -
Termination Solder Cup Solder Cup Solder Cup Solder Cup Solder Cup
Fastening Type Bayonet Lock Bayonet Lock Bayonet Lock Bayonet Lock Bayonet Lock
Orientation Keyed Keyed Keyed Keyed Keyed
Primary Material Metal Metal Metal Metal Metal
Shell Material Zinc Alloy Zinc Alloy Zinc Alloy Zinc Alloy Zinc Alloy
Shell Finish Nickel Nickel Nickel Nickel Nickel
Contact Finish - Mating Gold Gold Gold Gold Gold
Color Silver Silver Silver Brown, Silver Brown, Silver
Ingress Protection IP67/IP68 - Dust Tight, Waterproof IP67/IP68 - Dust Tight, Waterproof IP67/IP68 - Dust Tight, Waterproof IP67/IP68 - Dust Tight, Waterproof IP67/IP68 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Features - - - Backshell, Clamp, Strain Relief Backshell, Clamp, Coupling Nut, Strain Relief
Shielding - - - Shielded Shielded
Current Rating (Amps) 5A 2A 5A 5A 5A
Voltage Rating 125VAC, 175VDC 30VAC, 42VDC 125VAC, 175VDC 125VAC, 175VDC 125VAC, 175VDC
Cable Opening - - - - -
Operating Temperature -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C
