LF07WBP-3P
  • Share:

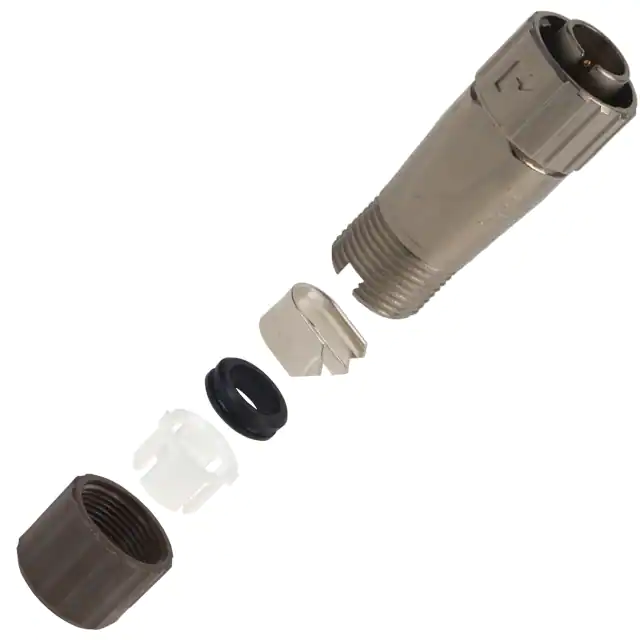

Hirose Electric Co Ltd LF07WBP-3P

Manufacturer No:
LF07WBP-3P
Manufacturer:
Hirose Electric Co Ltd
Package:
Bulk
Datasheet:
LF07WBP-3P Datasheet
ECAD Model:
-
Description:
CONN PLUG MALE 3P GOLD SLDR CUP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Plug, Male Pins
Number of Positions:3
Shell Size - Insert:7
Shell Size, MIL:-
Mounting Type:Free Hanging (In-Line)
Mounting Feature:-
Termination:Solder Cup
Fastening Type:Bayonet Lock
Orientation:Keyed
Primary Material:Metal
Shell Material:Zinc Alloy
Shell Finish:Nickel
Contact Finish - Mating:Gold
Color:Brown, Silver
Ingress Protection:IP67/IP68 - Dust Tight, Waterproof
Material Flammability Rating:UL94 V-0
Features:Backshell, Clamp, Coupling Nut, Strain Relief
Shielding:Shielded
Current Rating (Amps):5A
Voltage Rating:125VAC, 175VDC
Cable Opening:-
Operating Temperature:-25°C ~ 85°C
0 Remaining View Similar

In Stock

-
370

Please send RFQ , we will respond immediately.

Similar Products

Part Number LF07WBP-3P LF07WBR-3P   LF07WBP-3S   LF07WBP-6P   LF07WBJ-3P
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Obsolete Active Obsolete Obsolete Active
Connector Type Plug, Male Pins Receptacle, Male Pins Plug, Female Sockets Plug, Male Pins Jack, Male Pins
Number of Positions 3 3 3 6 3
Shell Size - Insert 7 7 7 7 7
Shell Size, MIL - - - - -
Mounting Type Free Hanging (In-Line) Panel Mount Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line)
Mounting Feature - Bulkhead - Rear Side Nut - - -
Termination Solder Cup Solder Cup Solder Cup Solder Cup Solder Cup
Fastening Type Bayonet Lock Bayonet Lock Bayonet Lock Bayonet Lock Bayonet Lock
Orientation Keyed Keyed Keyed Keyed Keyed
Primary Material Metal Metal Metal Metal Metal
Shell Material Zinc Alloy Zinc Alloy Zinc Alloy Zinc Alloy Zinc Alloy
Shell Finish Nickel Nickel Nickel Nickel Nickel
Contact Finish - Mating Gold Gold Gold Gold Gold
Color Brown, Silver Silver Brown, Silver Brown, Silver Brown, Silver
Ingress Protection IP67/IP68 - Dust Tight, Waterproof IP67/IP68 - Dust Tight, Waterproof IP67/IP68 - Dust Tight, Waterproof IP67/IP68 - Dust Tight, Waterproof IP67/IP68 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Features Backshell, Clamp, Coupling Nut, Strain Relief - Backshell, Clamp, Coupling Nut, Strain Relief Backshell, Clamp, Coupling Nut, Strain Relief Backshell, Clamp, Strain Relief
Shielding Shielded - Shielded Shielded Shielded
Current Rating (Amps) 5A 5A 5A 2A 5A
Voltage Rating 125VAC, 175VDC 125VAC, 175VDC 125VAC, 175VDC 30VAC, 42VDC 125VAC, 175VDC
Cable Opening - - - - -
Operating Temperature -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C
