Please send RFQ , we will respond immediately.

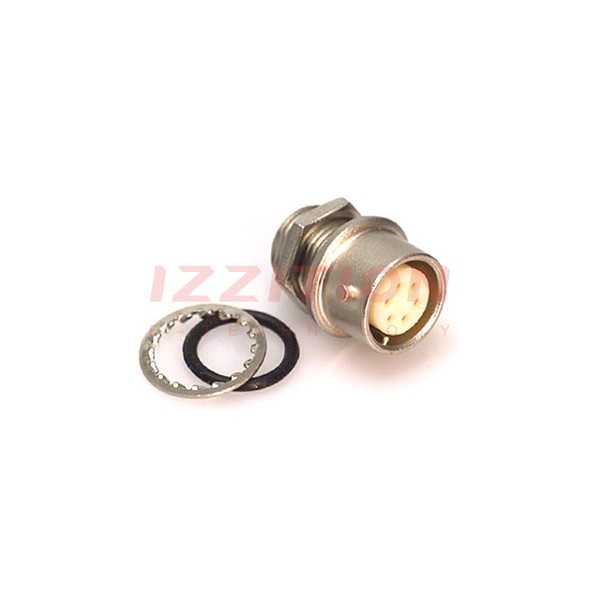

| Part Number | KMC9BRD-6S(71) | KMC9BRD-6S(75) | KMC9BRD-4S(71) |
|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Active | Obsolete |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Number of Positions | 6 | 6 | 4 |
| Shell Size - Insert | 9 | 9 | 9 |
| Shell Size, MIL | - | - | - |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Termination | Solder Cup | Solder Cup | Solder Cup |
| Fastening Type | Bayonet Lock | Bayonet Lock | Bayonet Lock |
| Orientation | Keyed | Keyed | Keyed |
| Primary Material | Metal | Metal | Metal |
| Shell Material | Zinc Alloy | Zinc Alloy | Zinc Alloy |
| Shell Finish | Nickel | Nickel | Nickel |
| Contact Finish - Mating | Gold | Gold | Gold |
| Color | Silver | Silver | Silver |
| Ingress Protection | Water Resistant | Water Resistant | Water Resistant |
| Material Flammability Rating | - | - | - |
| Features | - | - | - |
| Shielding | - | - | - |
| Current Rating (Amps) | 1A | 1A | 1A |
| Voltage Rating | 100VAC, 140VDC | 100VAC, 140VDC | 100VAC, 140VDC |
| Cable Opening | - | - | - |
| Operating Temperature | -10°C ~ 60°C | - | -25°C ~ 85°C |
