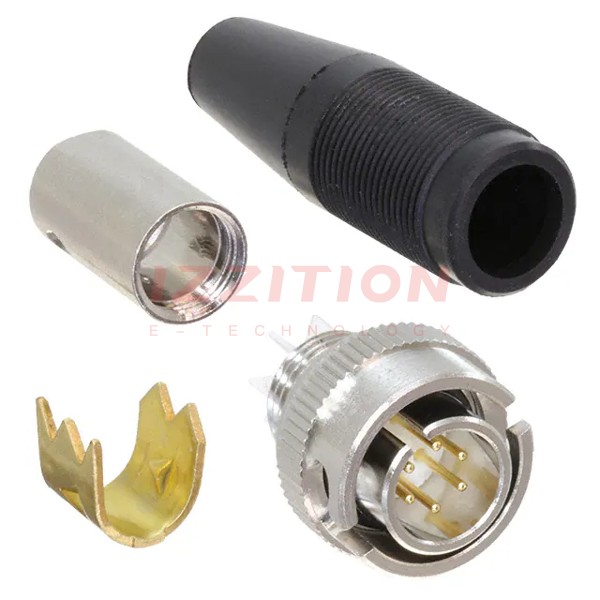

| Part Number | KMC9BPD-6P(31) | KMC9BPD-6P(71) | KMC9BPD-4P(31) |
|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Obsolete | Active |
| Connector Type | Plug, Male Pins | Plug, Male Pins | Plug, Male Pins |
| Number of Positions | 6 | 6 | 4 |
| Shell Size - Insert | 9 | 9 | 9 |
| Shell Size, MIL | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Mounting Feature | - | - | - |
| Termination | Solder Cup | Solder Cup | Solder Cup |
| Fastening Type | Bayonet Lock | Bayonet Lock | Bayonet Lock |
| Orientation | Keyed | Keyed | Keyed |
| Primary Material | Metal | Metal | Metal |
| Shell Material | Brass | Brass | Brass |
| Shell Finish | Nickel | Nickel | Nickel |
| Contact Finish - Mating | Gold | Gold | Gold |
| Color | Black, Silver | Black, Silver | Black, Silver |
| Ingress Protection | Water Resistant | Water Resistant | Water Resistant |
| Material Flammability Rating | - | - | - |
| Features | Backshell, Cable Clamp, Coupling Nut, Strain Relief | Backshell, Clamp, Coupling Nut, Strain Relief | Backshell, Cable Clamp, Coupling Nut, Strain Relief |
| Shielding | Unshielded | - | Unshielded |
| Current Rating (Amps) | 1A | 1A | 1A |
| Voltage Rating | 100VAC, 140VDC | 100VAC, 140VDC | 100VAC, 140VDC |
| Cable Opening | - | - | 0.236" (6.00mm) |
| Operating Temperature | -10°C ~ 60°C | -10°C ~ 60°C | -25°C ~ 85°C |
