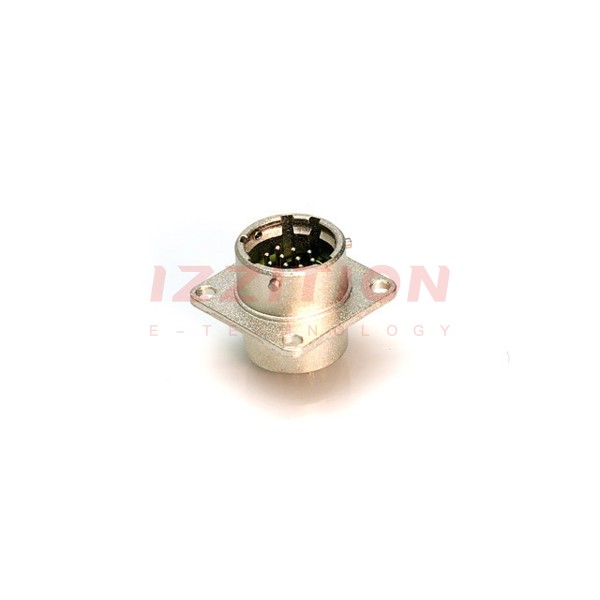

| Part Number | JRC16BR-14P(71) | JRC16BR-14S(71) | JRC16BP-14P(71) | JRC16BR-10P(71) |
|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active | Active | Obsolete |
| Connector Type | Receptacle, Male Pins | Receptacle, Female Sockets | Plug, Male Pins | - |
| Number of Positions | 14 | 14 | 14 | - |
| Shell Size - Insert | 16 | 16 | 16 | - |
| Shell Size, MIL | - | - | - | - |
| Mounting Type | Panel Mount | Panel Mount | Free Hanging (In-Line) | - |
| Mounting Feature | Flange | Flange | - | - |
| Termination | Solder Cup | Solder Cup | Solder Cup | - |
| Fastening Type | Bayonet Lock | Bayonet Lock | Bayonet Lock | - |
| Orientation | Keyed | Keyed | Keyed | - |
| Primary Material | Metal | Metal | Metal | Metal |
| Shell Material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
| Shell Finish | Nickel | Nickel | Nickel | Nickel |
| Contact Finish - Mating | Silver | Silver | Silver | - |
| Color | Silver | Silver | Silver | - |
| Ingress Protection | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | - |
| Features | - | - | Backshell, Clamp, Coupling Nut, Strain Relief | - |
| Shielding | Unshielded | Unshielded | Unshielded | - |
| Current Rating (Amps) | 5A | 5A | 5A | - |
| Voltage Rating | 250VAC, 350VDC | 250VAC, 350VDC | 250VAC, 350VDC | - |
| Cable Opening | 0.783" (19.90mm) | 0.783" (19.90mm) | - | - |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | - |
