Please send RFQ , we will respond immediately.

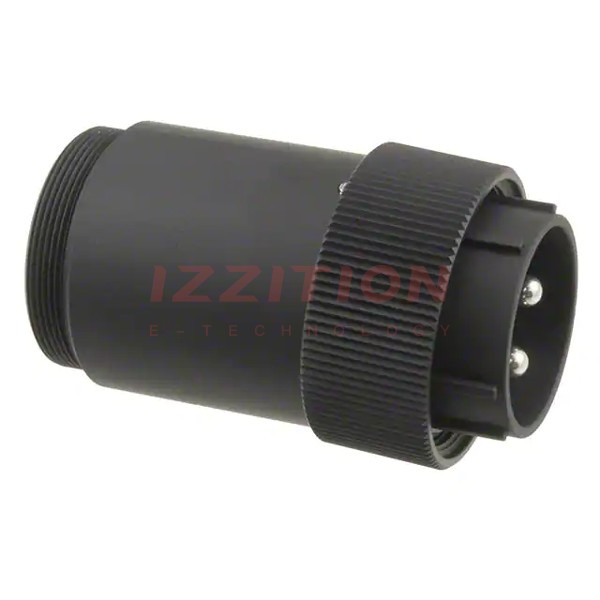

| Part Number | JR25WPH-4P | JR25WRH-4P | JR25WPH-4S | JR25PH-4P | JR25WP-4P |
|---|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active | Active | Active | Obsolete |
| Connector Type | Plug, Male Pins | Receptacle, Male Pins | Plug, Female Sockets | Plug, Male Pins | - |
| Number of Positions | 4 | 4 | 4 | 4 | - |
| Shell Size - Insert | 25 | 25 | 25 | 25 | - |
| Shell Size, MIL | - | - | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Panel Mount | Free Hanging (In-Line) | Free Hanging (In-Line) | - |
| Mounting Feature | - | Flange | - | - | - |
| Termination | Solder Cup | Solder Cup | Solder Cup | Solder Cup | - |
| Fastening Type | Threaded | Threaded | Threaded | Threaded | - |
| Orientation | Keyed | Keyed | Keyed | Keyed | - |
| Primary Material | Metal | Metal | Metal | Metal | - |
| Shell Material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | - |
| Shell Finish | Black Chromium | Black Chromium | Black Chromium | Nickel | - |
| Contact Finish - Mating | Silver | Silver | Silver | Silver | - |
| Color | Black | Black | Black | Silver | - |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof | IP67/IP68 - Dust Tight, Waterproof | IP67/IP68 - Dust Tight, Waterproof | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | - |
| Features | Backshell, Coupling Nut | - | Backshell, Coupling Nut | Backshell, Cable Clamp, Coupling Nut | - |
| Shielding | - | - | - | Unshielded | - |
| Current Rating (Amps) | 30A | 30A | 30A | 30A | - |
| Voltage Rating | 300VAC, 420VDC | 300VAC, 420VDC | 300VAC, 420VDC | 1000VAC, 1400VDC | - |
| Cable Opening | - | 1.098" (27.90mm) | - | 0.709" (18.00mm) | - |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | - |
