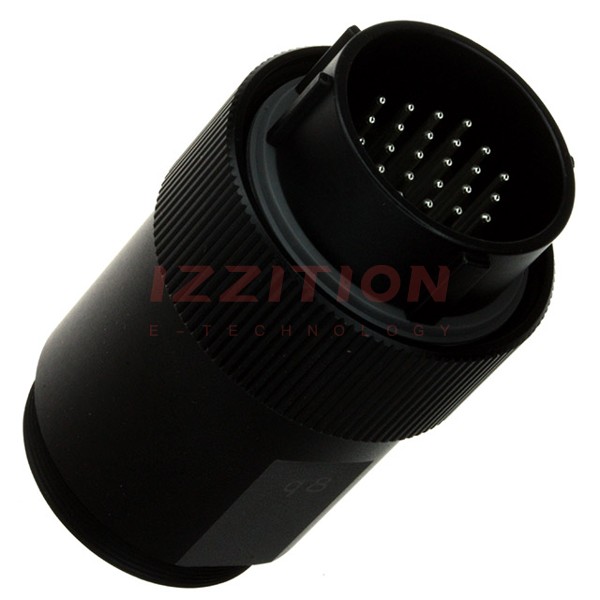

| Part Number | JR25WP-24P(71) | JR25WP-4P(71) | JR25WP-24S(71) | JR25WR-24P(71) | JR25WP-24P(31) |
|---|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Active |
| Connector Type | Plug, Male Pins | - | Plug, Female Sockets | Receptacle, Male Pins | Plug, Male Pins |
| Number of Positions | 24 | - | 24 | 24 | 24 |
| Shell Size - Insert | 25 | - | 25 | 25 | 25 |
| Shell Size, MIL | - | - | - | - | - |
| Mounting Type | Free Hanging (In-Line) | - | Free Hanging (In-Line) | Panel Mount | Free Hanging (In-Line) |
| Mounting Feature | - | - | - | Flange | - |
| Termination | Solder Cup | - | Solder Cup | Solder Cup | Solder Cup |
| Fastening Type | Threaded | - | Threaded | Threaded | Threaded |
| Orientation | Keyed | - | Keyed | Keyed | Keyed |
| Primary Material | Metal | - | Metal | Metal | Metal |
| Shell Material | Aluminum Alloy | - | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
| Shell Finish | Black Chromium | - | Black Chromium | Black Chromium | Black Chromium |
| Contact Finish - Mating | Silver | - | Silver | Silver | Silver |
| Color | Black | - | Black | Black | Black |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof | - | IP67/IP68 - Dust Tight, Waterproof | IP67/IP68 - Dust Tight, Waterproof | IP67/IP68 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 | - | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Features | Backshell, Coupling Nut | - | Backshell, Coupling Nut | - | Backshell, Coupling Nut |
| Shielding | - | - | - | - | Unshielded |
| Current Rating (Amps) | 5A | - | 5A | 5A | 5A |
| Voltage Rating | 100VAC, 140VDC | - | 100VAC, 140VDC | 100VAC, 140VDC | 100VAC, 140VDC |
| Cable Opening | - | - | - | 1.098" (27.90mm) | - |
| Operating Temperature | -25°C ~ 85°C | - | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
