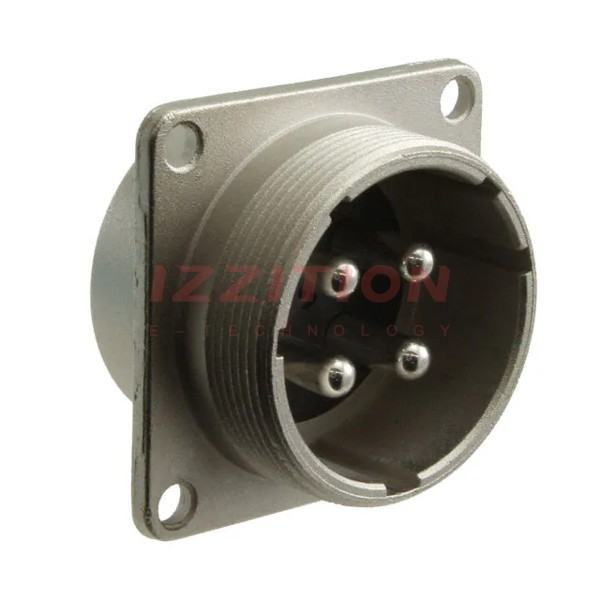

| Part Number | JR25RH-4P | JR25WRH-4P | JR25RH-4S | JR25PH-4P |
|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active | Active | Active |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins | Receptacle, Female Sockets | Plug, Male Pins |
| Number of Positions | 4 | 4 | 4 | 4 |
| Shell Size - Insert | 25 | 25 | 25 | 25 |
| Shell Size, MIL | - | - | - | - |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount | Free Hanging (In-Line) |
| Mounting Feature | Flange | Flange | Flange | - |
| Termination | Solder Cup | Solder Cup | Solder Cup | Solder Cup |
| Fastening Type | Threaded | Threaded | Threaded | Threaded |
| Orientation | Keyed | Keyed | Keyed | Keyed |
| Primary Material | Metal | Metal | Metal | Metal |
| Shell Material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
| Shell Finish | Nickel | Black Chromium | Nickel | Nickel |
| Contact Finish - Mating | Silver | Silver | Silver | Silver |
| Color | Silver | Black | Silver | Silver |
| Ingress Protection | - | IP67/IP68 - Dust Tight, Waterproof | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Features | - | - | - | Backshell, Cable Clamp, Coupling Nut |
| Shielding | Unshielded | - | Unshielded | Unshielded |
| Current Rating (Amps) | 30A | 30A | 30A | 30A |
| Voltage Rating | 1000VAC, 1400VDC | 300VAC, 420VDC | 1000VAC, 1400VDC | 1000VAC, 1400VDC |
| Cable Opening | 1.098" (27.90mm) | 1.098" (27.90mm) | 1.098" (27.90mm) | 0.709" (18.00mm) |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
