JR25JK-24P
  • Share:

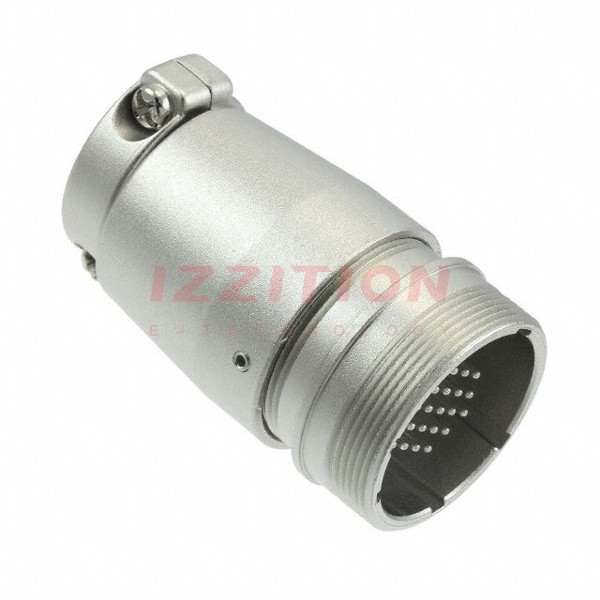

Hirose Electric Co Ltd JR25JK-24P

Manufacturer No:
JR25JK-24P
Manufacturer:
Hirose Electric Co Ltd
Package:
Bulk
Datasheet:
JR25JK-24P Datasheet
ECAD Model:
-
Description:
CONN JACK MALE 24P SOLDER CUP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Jack, Male Pins
Number of Positions:24
Shell Size - Insert:25
Shell Size, MIL:-
Mounting Type:Free Hanging (In-Line)
Mounting Feature:-
Termination:Solder Cup
Fastening Type:Threaded
Orientation:Keyed
Primary Material:Metal
Shell Material:Aluminum Alloy
Shell Finish:Nickel
Contact Finish - Mating:Silver
Color:Silver
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Features:Backshell, Cable Clamp
Shielding:Unshielded
Current Rating (Amps):5A
Voltage Rating:250VAC, 350VDC
Cable Opening:0.709" (18.00mm)
Operating Temperature:-25°C ~ 85°C
0 Remaining View Similar

In Stock

$18.87
19

Please send RFQ , we will respond immediately.

Similar Products

Part Number JR25JK-24P JR25RK-24P   JR25JK-24S
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Active Active Active
Connector Type Jack, Male Pins Receptacle, Male Pins Jack, Female Sockets
Number of Positions 24 24 24
Shell Size - Insert 25 25 25
Shell Size, MIL - - -
Mounting Type Free Hanging (In-Line) Panel Mount Free Hanging (In-Line)
Mounting Feature - Flange -
Termination Solder Cup Solder Cup Solder Cup
Fastening Type Threaded Threaded Threaded
Orientation Keyed Keyed Keyed
Primary Material Metal Metal Metal
Shell Material Aluminum Alloy Aluminum Alloy Aluminum Alloy
Shell Finish Nickel Nickel Nickel
Contact Finish - Mating Silver Silver Silver
Color Silver Silver Silver
Ingress Protection - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0
Features Backshell, Cable Clamp - Backshell, Cable Clamp
Shielding Unshielded Unshielded Unshielded
Current Rating (Amps) 5A 5A 5A
Voltage Rating 250VAC, 350VDC 250VAC, 350VDC 250VAC, 350VDC
Cable Opening 0.709" (18.00mm) 1.098" (27.90mm) 0.709" (18.00mm)
Operating Temperature -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C
