JR21WR-16P(71)
  • Share:

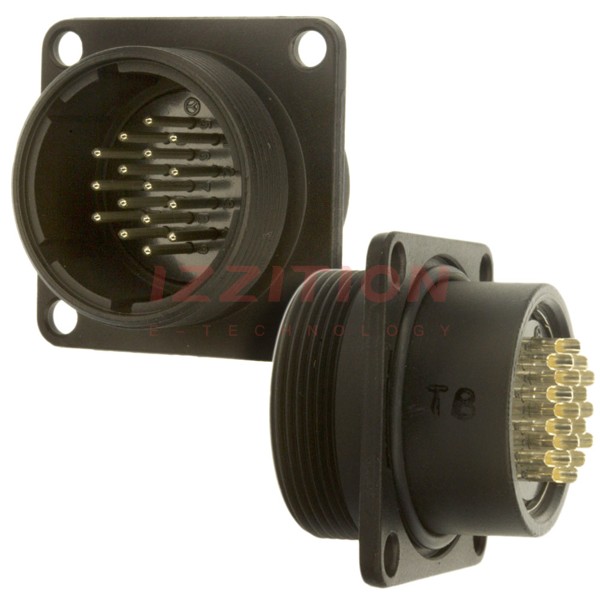

Hirose Electric Co Ltd JR21WR-16P(71)

Manufacturer No:
JR21WR-16P(71)
Manufacturer:
Hirose Electric Co Ltd
Package:
Bulk
Datasheet:
JR21WR-16P(71) Datasheet
ECAD Model:
-
Description:
CONN RCPT MALE 16P SOLDER CUP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle, Male Pins
Number of Positions:16
Shell Size - Insert:21
Shell Size, MIL:-
Mounting Type:Panel Mount
Mounting Feature:Flange
Termination:Solder Cup
Fastening Type:Threaded
Orientation:Keyed
Primary Material:Metal
Shell Material:Aluminum Alloy
Shell Finish:Black Chromium
Contact Finish - Mating:Silver
Color:Black
Ingress Protection:IP67/IP68 - Dust Tight, Waterproof
Material Flammability Rating:UL94 V-0
Features:-
Shielding:-
Current Rating (Amps):5A
Voltage Rating:100VAC, 140VDC
Cable Opening:0.941" (23.90mm)
Operating Temperature:-25°C ~ 85°C
0 Remaining View Similar

In Stock

-
194

Please send RFQ , we will respond immediately.

Similar Products

Part Number JR21WR-16P(71) JR25WR-16P(71)   JR21WR-16S(71)   JR21WP-16P(71)   JR21WR-10P(71)
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Obsolete Obsolete Obsolete Obsolete Obsolete
Connector Type Receptacle, Male Pins Receptacle, Male Pins Receptacle, Female Sockets Plug, Male Pins Receptacle, Male Pins
Number of Positions 16 16 16 16 10
Shell Size - Insert 21 25 21 21 21
Shell Size, MIL - - - - -
Mounting Type Panel Mount Panel Mount Panel Mount Free Hanging (In-Line) Panel Mount
Mounting Feature Flange Flange Flange - Flange
Termination Solder Cup Solder Cup Solder Cup Solder Cup Solder Cup
Fastening Type Threaded Threaded Threaded Threaded Threaded
Orientation Keyed Keyed Keyed Keyed Keyed
Primary Material Metal Metal Metal Metal Metal
Shell Material Aluminum Alloy Aluminum Alloy Aluminum Alloy Aluminum Alloy Aluminum Alloy
Shell Finish Black Chromium Black Chromium Black Chromium Black Chromium Black Chromium
Contact Finish - Mating Silver Silver Silver Silver Silver
Color Black Black Black Black Black
Ingress Protection IP67/IP68 - Dust Tight, Waterproof IP67/IP68 - Dust Tight, Waterproof IP67/IP68 - Dust Tight, Waterproof IP67/IP68 - Dust Tight, Waterproof IP67/IP68 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Features - - - Backshell, Coupling Nut -
Shielding - - - - -
Current Rating (Amps) 5A 10A 5A 5A 10A
Voltage Rating 100VAC, 140VDC 100VAC, 140VDC 100VAC, 140VDC 100VAC, 140VDC 100VAC, 140VDC
Cable Opening 0.941" (23.90mm) 1.098" (27.90mm) 0.941" (23.90mm) - 0.941" (23.90mm)
Operating Temperature -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C
