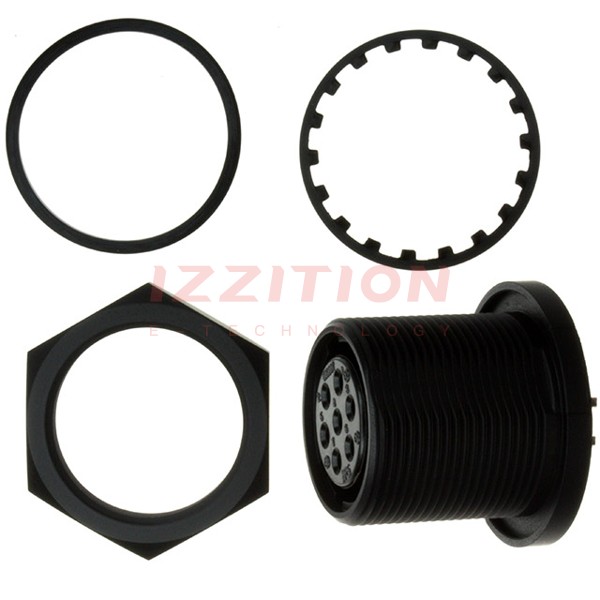

| Part Number | JR16WRA-7S(71) | JR16WR-7S(71) | JR16WRA-7P(71) |
|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Obsolete | Obsolete |
| Connector Type | - | Receptacle, Female Sockets | Receptacle, Male Pins |
| Number of Positions | - | 7 | 7 |
| Shell Size - Insert | - | 16 | 16 |
| Shell Size, MIL | - | - | - |
| Mounting Type | - | Panel Mount | Panel Mount |
| Mounting Feature | - | Flange | Bulkhead - Front Side Nut |
| Termination | - | Solder Cup | Solder Cup |
| Fastening Type | - | Threaded | Threaded |
| Orientation | - | Keyed | Keyed |
| Primary Material | - | Metal | Metal |
| Shell Material | - | Aluminum Alloy | Aluminum Alloy |
| Shell Finish | - | Black Chromium | Black Chromium |
| Contact Finish - Mating | - | Silver | Silver |
| Color | - | Black | Black |
| Ingress Protection | - | IP67/IP68 - Dust Tight, Waterproof | IP67/IP68 - Dust Tight, Waterproof |
| Material Flammability Rating | - | UL94 V-0 | UL94 V-0 |
| Features | - | - | - |
| Shielding | - | - | - |
| Current Rating (Amps) | - | 10A | 10A |
| Voltage Rating | - | 100VAC, 140VDC | 100VAC, 140VDC |
| Cable Opening | - | 0.783" (19.90mm) | - |
| Operating Temperature | - | -25°C ~ 85°C | -25°C ~ 85°C |
