JR16WR-7S(31)
  • Share:

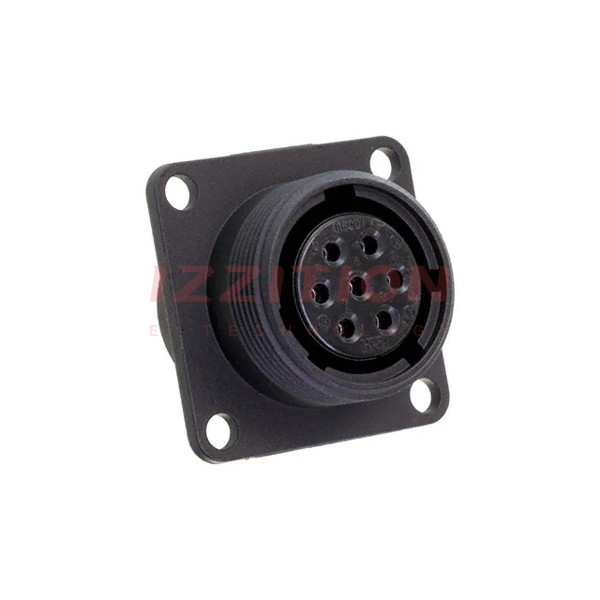

Hirose Electric Co Ltd JR16WR-7S(31)

Manufacturer No:
JR16WR-7S(31)
Manufacturer:
Hirose Electric Co Ltd
Package:
Bulk
Datasheet:
JR16WR-7S(31) Datasheet
ECAD Model:
-
Description:
CONN RCPT FMALE 7P SOLDER CUP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle, Female Sockets
Number of Positions:7
Shell Size - Insert:16
Shell Size, MIL:-
Mounting Type:Panel Mount
Mounting Feature:Flange
Termination:Solder Cup
Fastening Type:Threaded
Orientation:Keyed
Primary Material:Metal
Shell Material:Aluminum Alloy
Shell Finish:Black Chromium
Contact Finish - Mating:Silver
Color:Black
Ingress Protection:IP67/IP68 - Dust Tight, Waterproof
Material Flammability Rating:UL94 V-0
Features:-
Shielding:Unshielded
Current Rating (Amps):10A
Voltage Rating:100VAC, 140VDC
Cable Opening:-
Operating Temperature:-25°C ~ 85°C
0 Remaining View Similar

In Stock

$11.52
64

Please send RFQ , we will respond immediately.

Similar Products

Part Number JR16WR-7S(31) JR16WR-7S(71)   JR16WP-7S(31)   JR16WR-7P(31)
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Active Obsolete Active Active
Connector Type Receptacle, Female Sockets Receptacle, Female Sockets Plug, Female Sockets Receptacle, Male Pins
Number of Positions 7 7 7 7
Shell Size - Insert 16 16 16 16
Shell Size, MIL - - - -
Mounting Type Panel Mount Panel Mount Free Hanging (In-Line) Panel Mount
Mounting Feature Flange Flange - Flange
Termination Solder Cup Solder Cup Solder Cup Solder Cup
Fastening Type Threaded Threaded Threaded Threaded
Orientation Keyed Keyed Keyed Keyed
Primary Material Metal Metal Metal Metal
Shell Material Aluminum Alloy Aluminum Alloy Aluminum Alloy Aluminum Alloy
Shell Finish Black Chromium Black Chromium Black Chromium Black Chromium
Contact Finish - Mating Silver Silver Silver Silver
Color Black Black Black Black
Ingress Protection IP67/IP68 - Dust Tight, Waterproof IP67/IP68 - Dust Tight, Waterproof IP67/IP68 - Dust Tight, Waterproof IP67/IP68 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Features - - Backshell, Coupling Nut -
Shielding Unshielded - Unshielded Unshielded
Current Rating (Amps) 10A 10A 10A 10A
Voltage Rating 100VAC, 140VDC 100VAC, 140VDC 100VAC, 140VDC 100VAC, 140VDC
Cable Opening - 0.783" (19.90mm) - -
Operating Temperature -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C
