Please send RFQ , we will respond immediately.

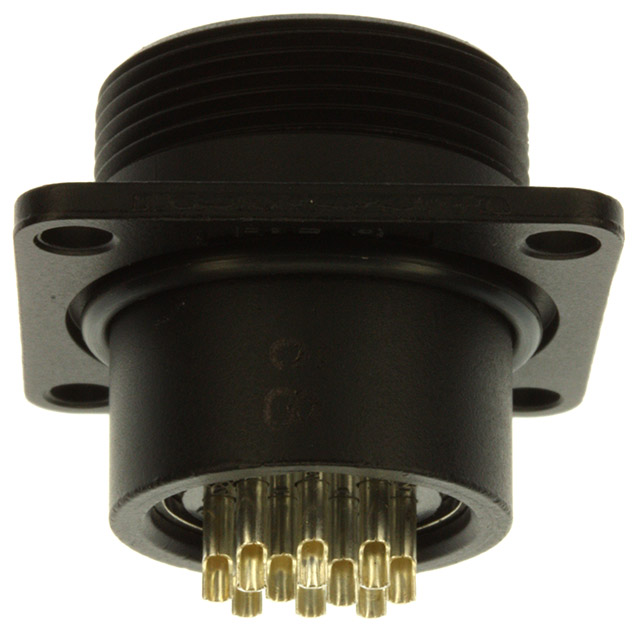

| Part Number | JR16WR-10S(71) | JR16WRA-10S(71) | JR16WP-10S(71) | JR16WR-10P(71) | JR16WR-10S(31) |
|---|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Active |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets | Plug, Female Sockets | Receptacle, Male Pins | Receptacle, Female Sockets |
| Number of Positions | 10 | 10 | 10 | 10 | 10 |
| Shell Size - Insert | 16 | 16 | 16 | 16 | 16 |
| Shell Size, MIL | - | - | - | - | - |
| Mounting Type | Panel Mount | Panel Mount | Free Hanging (In-Line) | Panel Mount | Panel Mount |
| Mounting Feature | Flange | Bulkhead - Front Side Nut | - | Flange | Flange |
| Termination | Solder Cup | Solder Cup | Solder Cup | Solder Cup | Solder Cup |
| Fastening Type | Threaded | Threaded | Threaded | Threaded | Threaded |
| Orientation | Keyed | Keyed | Keyed | Keyed | Keyed |
| Primary Material | Metal | Metal | Metal | Metal | Metal |
| Shell Material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
| Shell Finish | Black Chromium | Black Chromium | Black Chromium | Black Chromium | Black Chromium |
| Contact Finish - Mating | Silver | Silver | Silver | Silver | Silver |
| Color | Black | Black | Black | Black | Black |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof | IP67/IP68 - Dust Tight, Waterproof | IP67/IP68 - Dust Tight, Waterproof | IP67/IP68 - Dust Tight, Waterproof | IP67/IP68 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Features | - | - | Backshell, Coupling Nut | - | - |
| Shielding | - | - | - | - | Unshielded |
| Current Rating (Amps) | 5A | 5A | 5A | 5A | 5A |
| Voltage Rating | 100VAC, 140VDC | 100VAC, 140VDC | 100VAC, 140VDC | 100VAC, 140VDC | 100VAC, 140VDC |
| Cable Opening | 0.783" (19.90mm) | - | - | 0.783" (19.90mm) | - |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
