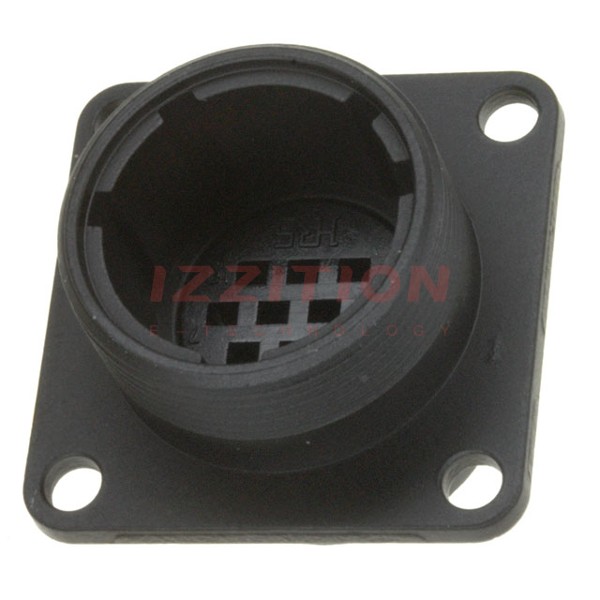

| Part Number | JR16WR-10PC(71) | JR16WR-10SC(71) | JR16WP-10PC(71) | JR16WR-10PC(31) |
|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Obsolete | Obsolete | Active |
| Connector Type | Receptacle Housing | Receptacle Housing | Plug Housing | Receptacle Housing |
| Type | For Male Pins | For Female Sockets | For Male Pins | For Male Pins |
| Number of Positions | 10 | 10 | 10 | 10 |
| Shell Size - Insert | 16 | 16 | 16 | 16 |
| Shell Size, MIL | - | - | - | - |
| Contact Type | Crimp | Crimp | Crimp | Crimp |
| Contact Size | 1.0mm | 1.0mm | 1.0mm | 1.0mm |
| Mounting Type | Panel Mount | Panel Mount | Free Hanging (In-Line) | Panel Mount |
| Mounting Feature | Flange | Flange | - | Flange |
| Fastening Type | Threaded | Threaded | Threaded | Threaded |
| Orientation | Keyed | Keyed | Keyed | Keyed |
| Primary Material | - | - | - | - |
| Shell Material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
| Shell Finish | Chrome | Chrome | Chrome | Chrome |
| Housing Color | Black | Black | Black | Black |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof | IP67/IP68 - Dust Tight, Waterproof | IP67/IP68 - Dust Tight, Waterproof | IP67/IP68 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Features | - | - | Backshell, Coupling Nut | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded |
