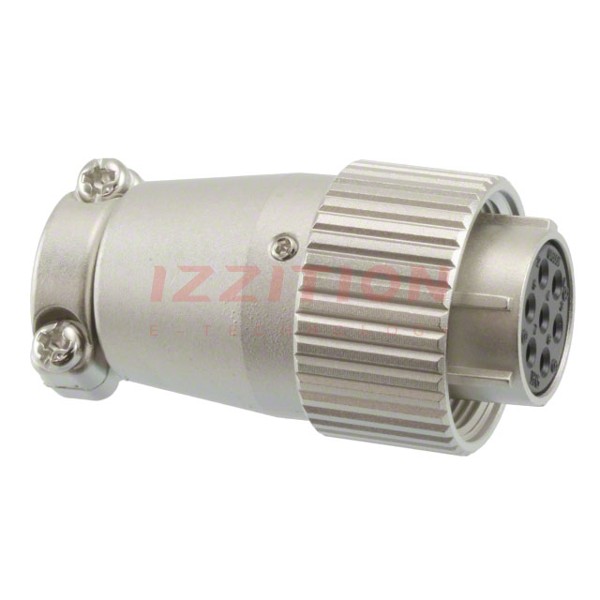

| Part Number | JR16PK-7S(71) | JR16PK-7P(71) |
|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active |
| Connector Type | Plug, Female Sockets | Plug, Male Pins |
| Number of Positions | 7 | 7 |
| Shell Size - Insert | 16 | 16 |
| Shell Size, MIL | - | - |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Mounting Feature | - | - |
| Termination | Solder Cup | Solder Cup |
| Fastening Type | Threaded | Threaded |
| Orientation | Keyed | Keyed |
| Primary Material | Metal | Metal |
| Shell Material | Aluminum Alloy | Aluminum Alloy |
| Shell Finish | Nickel | Nickel |
| Contact Finish - Mating | Silver | Silver |
| Color | Silver | Silver |
| Ingress Protection | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Features | Backshell, Cable Clamp, Coupling Nut | Backshell, Cable Clamp, Coupling Nut |
| Shielding | Unshielded | Unshielded |
| Current Rating (Amps) | 10A | 10A |
| Voltage Rating | 250VAC, 350VDC | 250VAC, 350VDC |
| Cable Opening | 0.453" (11.51mm) | 0.453" (11.51mm) |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C |
