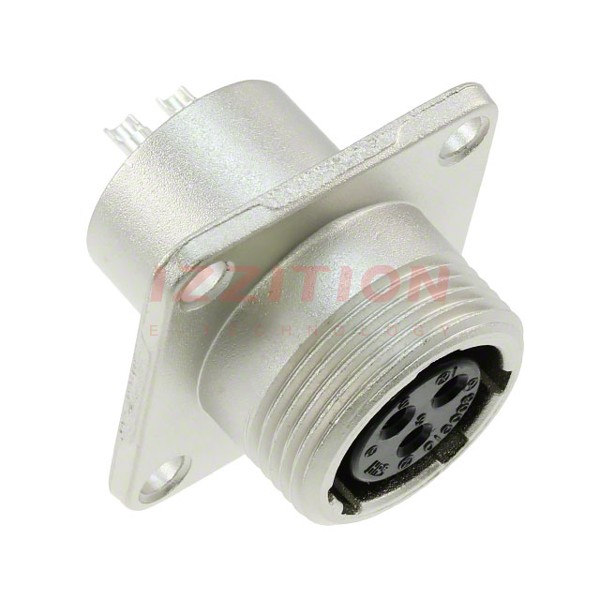

| Part Number | JR13RK-3S | JR13RK-5S | JR13JK-3S | JR13RK-3P |
|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active | Active | Active |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets | Jack, Female Sockets | Receptacle, Male Pins |
| Number of Positions | 3 | 5 | 3 | 3 |
| Shell Size - Insert | 13 | 13 | 13 | 13 |
| Shell Size, MIL | - | - | - | - |
| Mounting Type | Panel Mount | Panel Mount | Free Hanging (In-Line) | Panel Mount |
| Mounting Feature | Flange | Flange | - | Flange |
| Termination | Solder Cup | Solder Cup | Solder Cup | Solder Cup |
| Fastening Type | Threaded | Threaded | Threaded | Threaded |
| Orientation | Keyed | Keyed | Keyed | Keyed |
| Primary Material | Metal | Metal | Metal | Metal |
| Shell Material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
| Shell Finish | Nickel | Nickel | Nickel | Nickel |
| Contact Finish - Mating | Silver | Silver | Silver | Silver |
| Color | Silver | Silver | Silver | Silver |
| Ingress Protection | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Features | - | - | Backshell, Cable Clamp | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded |
| Current Rating (Amps) | 10A | 5A | 10A | 10A |
| Voltage Rating | 250VAC, 350VDC | 250VAC, 350VDC | 250VAC, 350VDC | 250VAC, 350VDC |
| Cable Opening | 0.626" (15.90mm) | 0.626" (15.90mm) | 0.335" (8.50mm) | 0.626" (15.90mm) |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
