IT-P-2P-35H(11)
  • Share:

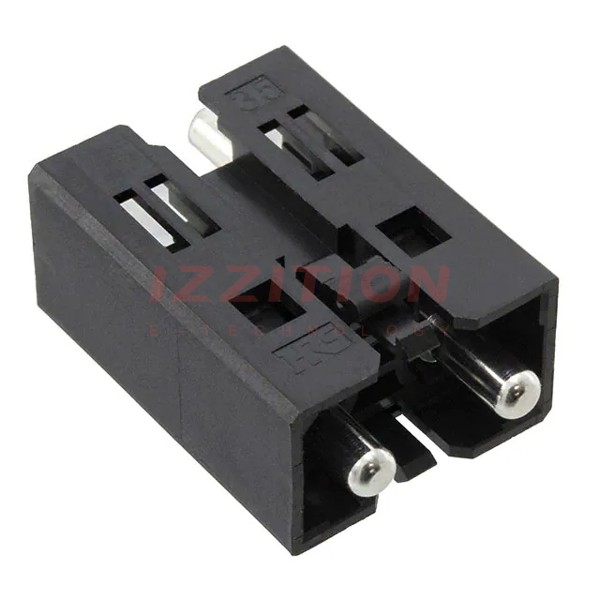

Hirose Electric Co Ltd IT-P-2P-35H(11)

Manufacturer No:
IT-P-2P-35H(11)
Manufacturer:
Hirose Electric Co Ltd
Package:
Tray
Datasheet:
IT-P-2P-35H(11) Datasheet
ECAD Model:
-
Description:
CONN HEADER 2POS 12MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Interposer
Contact Type:Male Pin
Pitch - Mating:0.472" (12.00mm)
Number of Positions:2
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Shrouded - 4 Wall
Mounting Type:Stacking
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.787" (19.99mm)
Contact Shape:Circular
Contact Finish - Mating:Silver
Contact Finish Thickness - Mating:200.0µin (5.08µm)
Contact Finish - Post:-
Contact Material:Copper Alloy
Insulation Material:Polybutylene Terephthalate (PBT)
Features:-
Operating Temperature:-55°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):60A per Contact
Voltage Rating:300V
0 Remaining View Similar

In Stock

$15.58
49

Please send RFQ , we will respond immediately.
