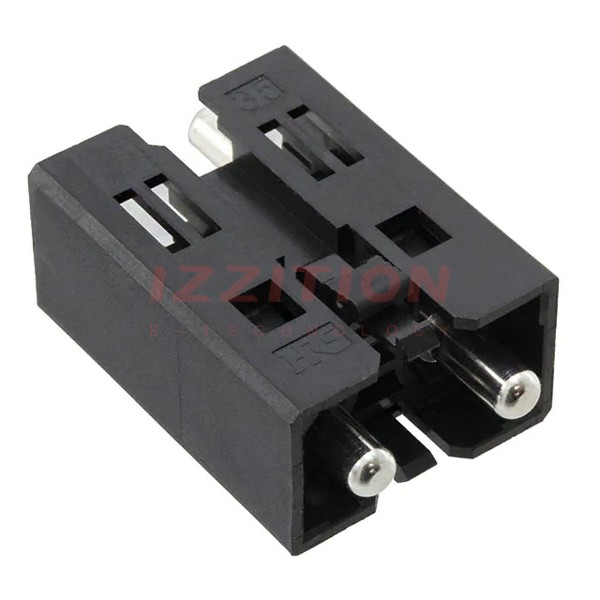

| Part Number | IT-P-2P-25H(11) | IT-P-2P-35H(11) |
|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active |
| Connector Type | Interposer | Interposer |
| Contact Type | Male Pin | Male Pin |
| Pitch - Mating | 0.472" (12.00mm) | 0.472" (12.00mm) |
| Number of Positions | 2 | 2 |
| Number of Rows | 1 | 1 |
| Row Spacing - Mating | - | - |
| Number of Positions Loaded | All | All |
| Style | Board to Board | Board to Board |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Mounting Type | Stacking | Stacking |
| Termination | Solder | Solder |
| Fastening Type | Locking Ramp | Locking Ramp |
| Contact Length - Mating | - | - |
| Contact Length - Post | - | - |
| Overall Contact Length | - | - |
| Insulation Height | 0.787" (19.99mm) | 0.787" (19.99mm) |
| Contact Shape | Circular | Circular |
| Contact Finish - Mating | Silver | Silver |
| Contact Finish Thickness - Mating | 200.0µin (5.08µm) | 200.0µin (5.08µm) |
| Contact Finish - Post | - | - |
| Contact Material | Copper Alloy | Copper Alloy |
| Insulation Material | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) |
| Features | - | - |
| Operating Temperature | -55°C ~ 85°C | -55°C ~ 85°C |
| Ingress Protection | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Insulation Color | Black | Black |
| Current Rating (Amps) | 60A per Contact | 60A per Contact |
| Voltage Rating | 300V | 300V |
