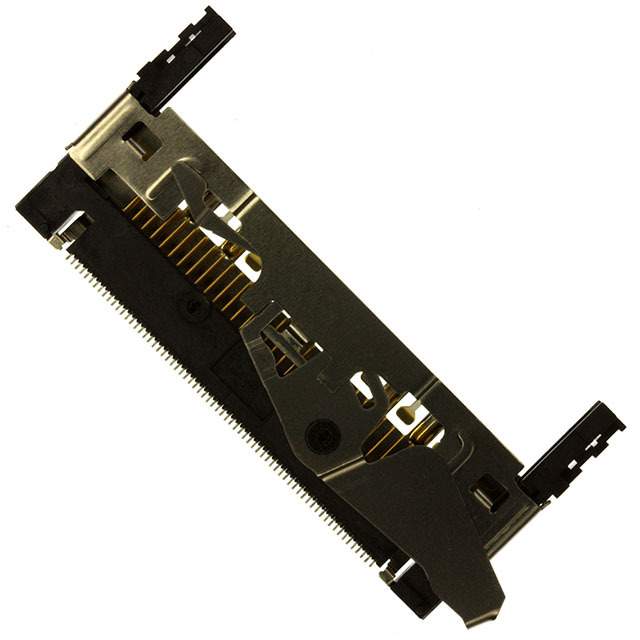

| Part Number | IC11S-PL-SF-EJR(71) | IC11SA-PL-SF-EJR(71) | IC11S-PLR-SF-EJR(71) | IC11S-PL-SF-EJL(71) |
|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active | Active | Active |
| Card Type | PCMCIA - CardBus, Type I, II, III | PCMCIA - CardBus, Type I, II, III | PCMCIA - CardBus, Type I, II, III | PCMCIA - CardBus, Type I, II, III |
| Number of Positions | 68 | 68 | 68 | 68 |
| Connector Type | Connector and Ejector | Connector and Ejector | Connector and Ejector | Connector and Ejector |
| Insertion, Removal Method | Push In, Push Out | Push In, Push Out | Push In, Push Out | Push In, Push Out |
| Ejector Side | Right | Right | Right | Left |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Features | Board Guide, Card Guide | Board Guide, Card Guide | Board Guide, Card Guide | Board Guide, Card Guide |
| Height Above Board | 0.220" (5.59mm) | 0.307" (7.80mm) | 0.220" (5.59mm) | 0.220" (5.59mm) |
| Mounting Feature | Normal, Standard - Top | Normal, Standard - Top | Reverse - Bottom | Normal, Standard - Top |
| Contact Finish | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | - | - | - | - |
