HVH-280-2P-6.5DS
  • Share:

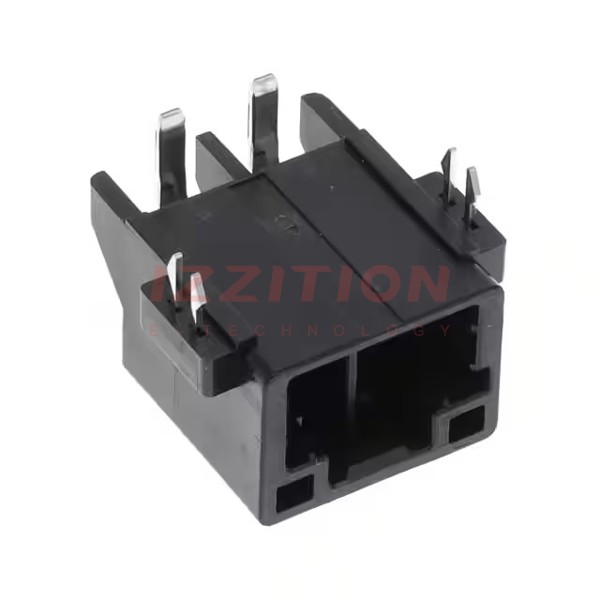

Hirose Electric Co Ltd HVH-280-2P-6.5DS

Manufacturer No:
HVH-280-2P-6.5DS
Manufacturer:
Hirose Electric Co Ltd
Package:
Tray
Datasheet:
HVH-280-2P-6.5DS Datasheet
ECAD Model:
-
Description:
AUTOMOTIVE CONN, RA, 6.5MM, THT,
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Blade
Pitch - Mating:0.256" (6.50mm)
Number of Positions:2
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Latch Lock
Contact Length - Mating:-
Contact Length - Post:0.144" (3.66mm)
Overall Contact Length:-
Insulation Height:0.500" (12.70mm)
Contact Shape:Rectangular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:39.4µin (1.00µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Polyamide (PA), Nylon
Features:Board Lock
Operating Temperature:-40°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):30A
Voltage Rating:600VAC/DC
0 Remaining View Similar

In Stock

$2.82
306

Please send RFQ , we will respond immediately.
