HS21R-7(71)
  • Share:

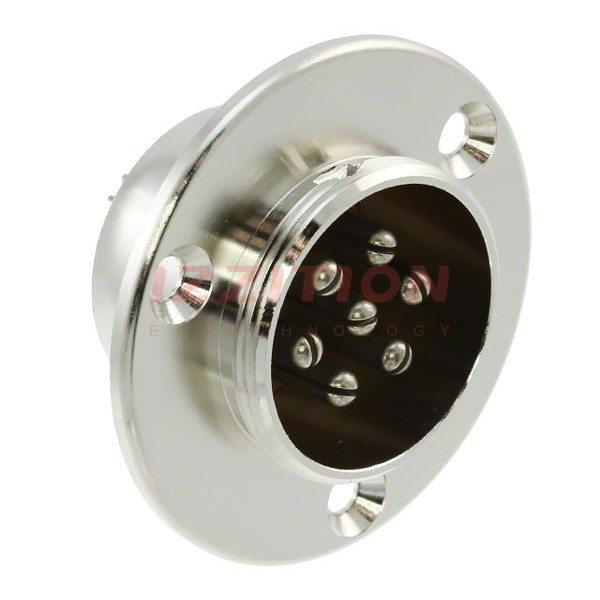

Hirose Electric Co Ltd HS21R-7(71)

Manufacturer No:
HS21R-7(71)
Manufacturer:
Hirose Electric Co Ltd
Package:
Bulk
Datasheet:
HS21R-7(71) Datasheet
ECAD Model:
-
Description:
CONN RCPT MALE 7P SOLDER CUP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle, Male Pins
Number of Positions:7
Shell Size - Insert:21
Shell Size, MIL:-
Mounting Type:Panel Mount
Mounting Feature:Flange
Termination:Solder Cup
Fastening Type:Threaded
Orientation:Keyed
Primary Material:Metal
Shell Material:Copper Alloy
Shell Finish:Nickel
Contact Finish - Mating:Nickel
Color:Silver
Ingress Protection:-
Material Flammability Rating:-
Features:-
Shielding:-
Current Rating (Amps):7A
Voltage Rating:-
Cable Opening:-
Operating Temperature:-
0 Remaining View Similar

In Stock

-
53

Please send RFQ , we will respond immediately.

Similar Products

Part Number HS21R-7(71) HS21R-8(71)   HS21P-7(71)   HS21R-2(71)   HS21R-3(71)   HS21R-4(71)   HS21R-5(71)   HS21R-6(71)
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete
Connector Type Receptacle, Male Pins Receptacle, Male Pins Plug, Female Sockets Receptacle, Male Pins Receptacle, Male Pins Receptacle, Male Pins Receptacle, Male Pins Receptacle, Male Pins
Number of Positions 7 8 7 2 3 4 5 6
Shell Size - Insert 21 21 21 21 21 21 21 21
Shell Size, MIL - - - - - - - -
Mounting Type Panel Mount Panel Mount Free Hanging (In-Line) Panel Mount Panel Mount Panel Mount Panel Mount Panel Mount
Mounting Feature Flange Flange - Flange Flange Flange Flange Flange
Termination Solder Cup Solder Cup Solder Cup Solder Cup Solder Cup Solder Cup Solder Cup Solder Cup
Fastening Type Threaded Threaded Threaded Threaded Threaded Threaded Threaded Threaded
Orientation Keyed Keyed Keyed Keyed Keyed Keyed Keyed Keyed
Primary Material Metal Metal Metal Metal Metal Metal Metal Metal
Shell Material Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy
Shell Finish Nickel Nickel Nickel Nickel Nickel Nickel Nickel Nickel
Contact Finish - Mating Nickel Nickel Nickel Nickel Nickel Nickel Nickel Nickel
Color Silver Silver Silver Silver Silver Silver Silver Silver
Ingress Protection - - - - - - - -
Material Flammability Rating - - - - - - - -
Features - - Cable Clamp - - - - -
Shielding - - - - - - - -
Current Rating (Amps) 7A 4A 7A 10A 10A 10A 10A 7A
Voltage Rating - - - - - - - -
Cable Opening - - - - - - - -
Operating Temperature - - - - - - - -
