Please send RFQ , we will respond immediately.

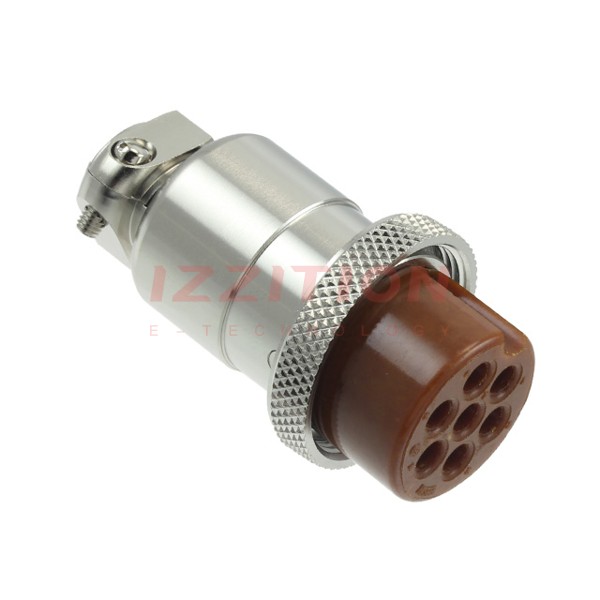

| Part Number | HS21P-7(71) | HS21R-7(71) | HS21P-8(71) | HS21P-2(71) | HS21P-3(71) | HS21P-4(71) | HS21P-5(71) | HS21P-6(71) |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Connector Type | Plug, Female Sockets | Receptacle, Male Pins | Plug, Female Sockets | Plug, Female Sockets | Plug, Female Sockets | Plug, Female Sockets | Plug, Female Sockets | Plug, Female Sockets |
| Number of Positions | 7 | 7 | 8 | 2 | 3 | 4 | 5 | 6 |
| Shell Size - Insert | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 |
| Shell Size, MIL | - | - | - | - | - | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Panel Mount | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Mounting Feature | - | Flange | - | - | - | - | - | - |
| Termination | Solder Cup | Solder Cup | Solder Cup | Solder Cup | Solder Cup | Solder Cup | Solder Cup | Solder Cup |
| Fastening Type | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded |
| Orientation | Keyed | Keyed | Keyed | Keyed | Keyed | Keyed | Keyed | Keyed |
| Primary Material | Metal | Metal | Metal | Metal | Metal | Metal | Metal | Metal |
| Shell Material | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy |
| Shell Finish | Nickel | Nickel | Nickel | Nickel | Nickel | Nickel | Nickel | Nickel |
| Contact Finish - Mating | Nickel | Nickel | Nickel | Nickel | Nickel | Nickel | Nickel | Nickel |
| Color | Silver | Silver | Silver | Silver | Silver | Silver | Silver | Silver |
| Ingress Protection | - | - | - | - | - | - | - | - |
| Material Flammability Rating | - | - | - | - | - | - | - | - |
| Features | Cable Clamp | - | Cable Clamp | Cable Clamp | Cable Clamp | Cable Clamp | Cable Clamp | Cable Clamp |
| Shielding | - | - | - | - | - | - | - | - |
| Current Rating (Amps) | 7A | 7A | 4A | 10A | 10A | 10A | 10A | 7A |
| Voltage Rating | - | - | - | - | - | - | - | - |
| Cable Opening | - | - | - | - | - | - | - | - |
| Operating Temperature | - | - | - | - | - | - | - | - |
