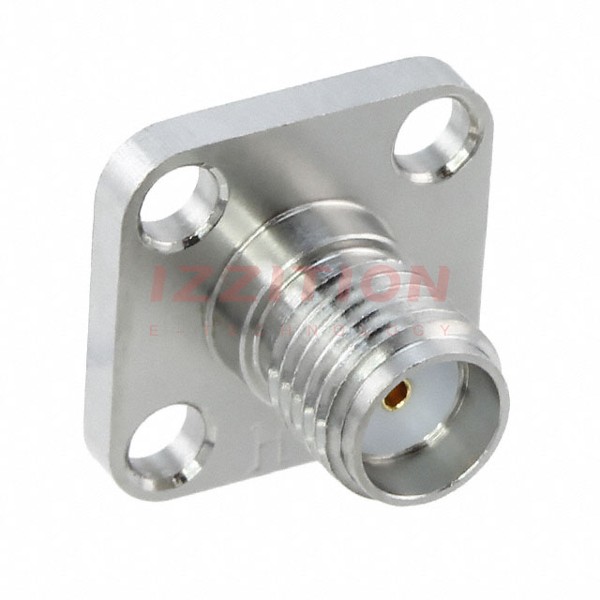

| Part Number | HRM-300-118S | HRM-300-11S | HRM-300-110S |
|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active | Active |
| Connector Style | SMA | SMA | SMA |
| Connector Type | Receptacle, Female Socket | Receptacle, Female Socket | Receptacle, Female Socket |
| Contact Termination | Solder | Solder | Solder |
| Shield Termination | Solder | Solder | Solder |
| Impedance | 50Ohm | 50Ohm | 50Ohm |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount |
| Mounting Feature | Flange | Flange | Flange |
| Cable Group | - | - | - |
| Fastening Type | Threaded | Threaded | Threaded |
| Frequency - Max | 12.4 GHz | 18 GHz | 12.4 GHz |
| Number of Ports | 1 | 1 | 1 |
| Features | Extended Insulation | Extended Insulation | Extended Insulation |
| Housing Color | Silver | Silver | Silver |
| Ingress Protection | - | - | - |
| Center Contact Material | Beryllium Copper | Beryllium Copper | Beryllium Copper |
