Please send RFQ , we will respond immediately.

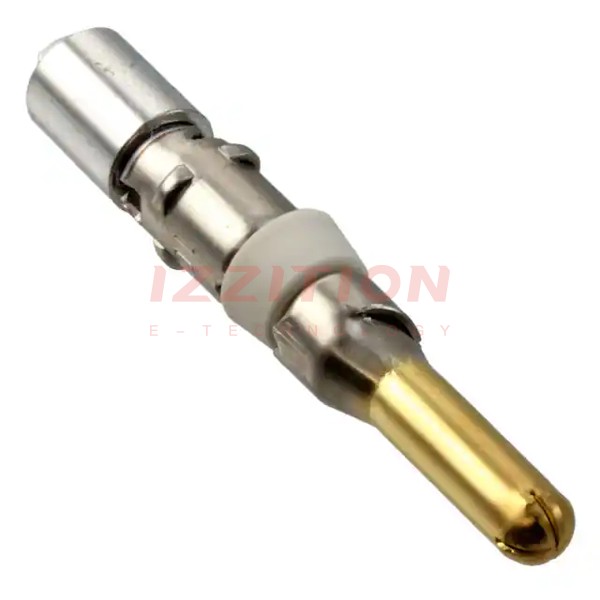

| Part Number | HR41-PC-111 | HR41-PC-121 | HR41-SC-111 | HR41A-PC-111 | HR41-PC-151 |
|---|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active | Active | Active | Active |
| Type | Stamped | Stamped | Stamped | Signal, Stamped | Stamped |
| Contact Type | Pin | Pin | Socket | Pin | Pin |
| Contact Size | - | - | - | - | - |
| Wire Gauge or Range - AWG | 10-12 AWG | 14-16 AWG | 10-12 AWG | 16-20 AWG | 14-18 AWG |
| Wire Gauge or Range - mm² | - | - | - | - | - |
| Wire Gauge or Range - Coaxial | - | - | - | - | - |
| Contact Termination | Crimp | Crimp | Crimp | Crimp | Crimp |
| Contact Material | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy |
| Contact Finish | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 8.00µin (0.203µm) | 8.00µin (0.203µm) | 8.00µin (0.203µm) | 30.0µin (0.76µm) | 8.00µin (0.203µm) |
| Termination Finish | Copper Alloy | Copper Alloy | Copper Alloy | - | Copper Alloy |
| Features | - | - | - | Insulation Support | - |
